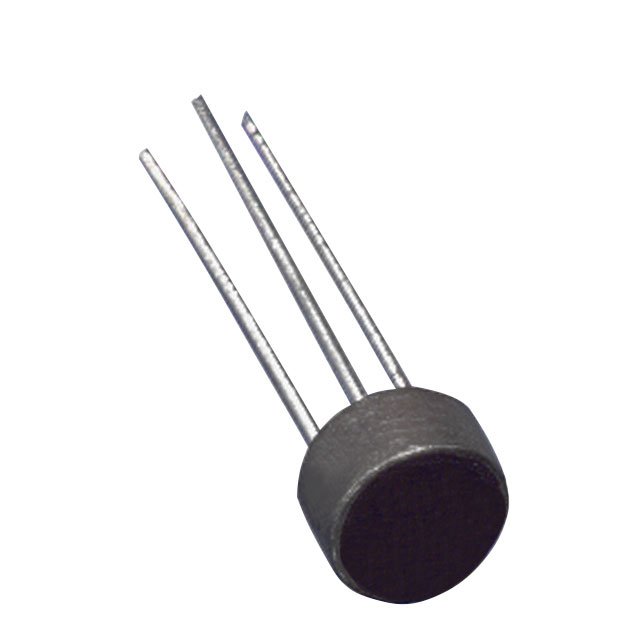

VTT1314H

Obsolete

Excelitas Technologies

SENSOR PHOTO TOP VIEW T1 3/4

Search across all available documentation for this part.

Obsolete

Excelitas Technologies

SENSOR PHOTO TOP VIEW T1 3/4

Technical Specifications

Parameters and characteristics for this part

Specification	VTT1314H

Current - Collector (Ic) (Max) [Max]	2.4 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	T 1 3/4
Viewing Angle	20 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Viewing Angle	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]
Excelitas Technologies VTT1314H	100 °C	-40 °C	Through Hole	Top View	20 °	30 V	T 1 3/4	100 nA	2.4 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors Top View T 1 3/4
