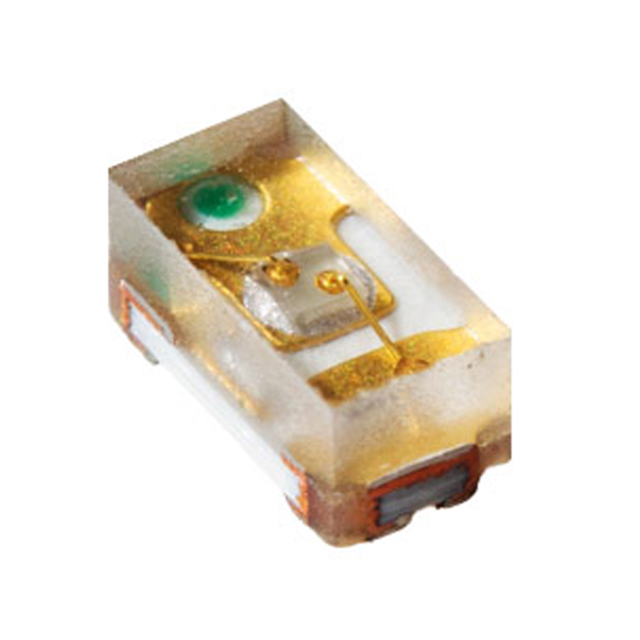

SM0402OC
ActiveBivar Inc.
LED ORANGE CLEAR 0402 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM0402OC
ActiveBivar Inc.
LED ORANGE CLEAR 0402 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM0402OC |
|---|---|
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.71 mm |
| Lens Color | Colorless |
| Lens Size [x] | 0.5 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 145 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.43 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.23 | |||
| Tape & Reel (TR) | 5000 | $ 0.21 | ||
Description
General part information
SM0402 Series
Orange 605nm LED Indication - Discrete 2.1V 0402 (1005 Metric)
