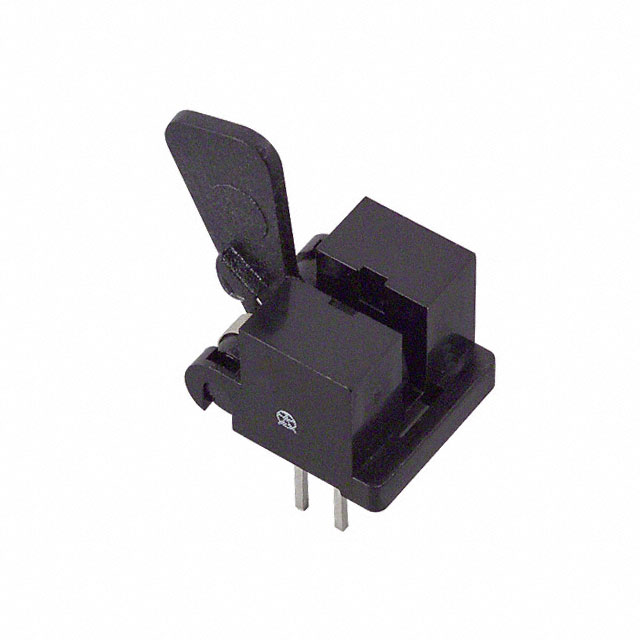

OPB680-20
ActiveTT Electronics/Optek Technology
SENSOR OPT SLOT TRANS W/RES PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB680-20
ActiveTT Electronics/Optek Technology
SENSOR OPT SLOT TRANS W/RES PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB680-20 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 30 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Transistor, Base-Emitter Resistor |
| Package / Case | PCB Mount |
| Sensing Method | Optical Flag |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.47 | |
| 100 | $ 3.27 | |||
| 250 | $ 3.15 | |||
| 500 | $ 3.02 | |||
| 1000 | $ 2.92 | |||
| 2500 | $ 2.87 | |||
Description
General part information
OPB680 Series
Optical Sensor Optical Flag Transistor, Base-Emitter Resistor PCB Mount
