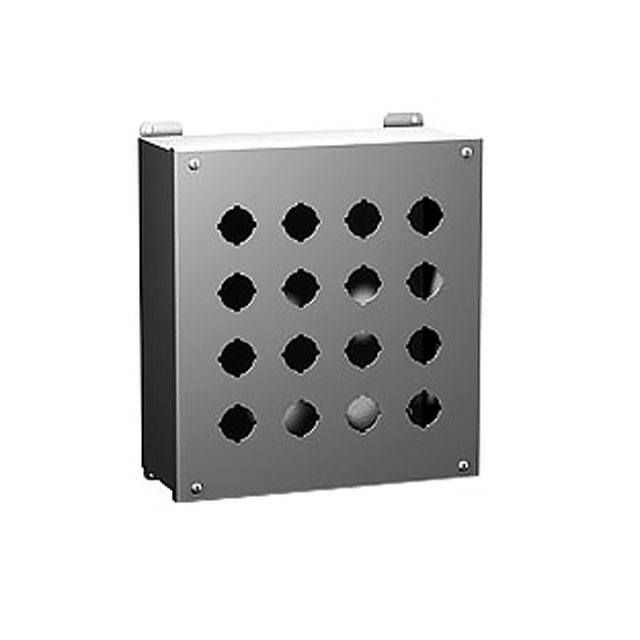

1437SSA
ActiveHammond Manufacturing
NATURAL STAINLESS STEEL BRACKET MOUNT PUSHBUTTON ENCLOSURE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEnclosure Overview
1437SSA
ActiveHammond Manufacturing
NATURAL STAINLESS STEEL BRACKET MOUNT PUSHBUTTON ENCLOSURE
Deep-Dive with AI
DocumentsEnclosure Overview
Technical Specifications
Parameters and characteristics for this part
| Specification | 1437SSA |
|---|---|
| Area (L x W) | 16 in˛ |
| Area (L x W) | 103 cm˛ |
| Color | Natural |
| Container Type | Box |
| Design | Cover Included |
| Features | Pushbutton Holes - 1 |
| Height [z] | 120.65 mm |
| Height [z] | 4.75 in |
| Ratings | JIC EGP-1-1967, IP66, NEMA 4X, UL-508, NEMA 4 |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Thickness | 14 Gauge |
| Weight | 1.4 kg |
| Weight | 3.1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 192.64 | |
Description
General part information
1437S Series
Box Metal, Stainless Steel Natural Cover Included 4.000" L x 4.000" W (101.60mm x 101.60mm) X 4.750" (120.65mm)
