11047-10-1-0500-007-1-TS

Active

CnC Tech, LLC

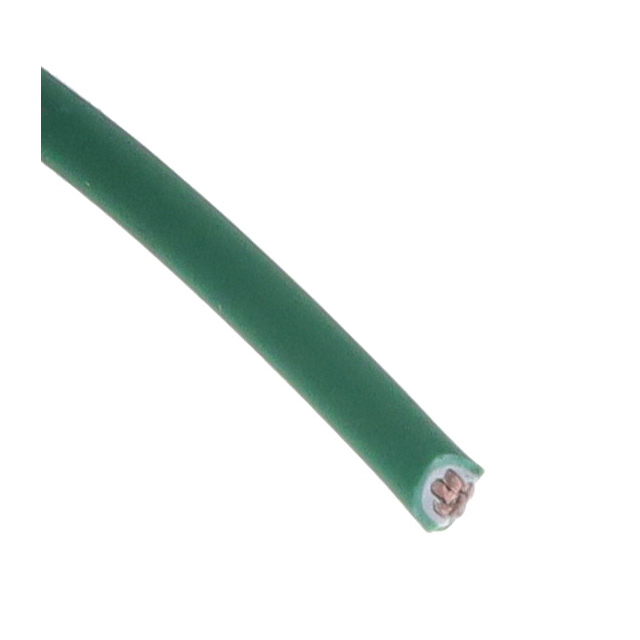

HOOK-UP STRND 10AWG GREEN

Search across all available documentation for this part.

Active

CnC Tech, LLC

HOOK-UP STRND 10AWG GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	11047-10-1-0500-007-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0092 in
Jacket (Insulation) Diameter [diameter]	0.09 in
Jacket (Insulation) Diameter [diameter]	2.29 mm
Jacket (Insulation) Material	Polyphenylene Ether (PPE)
Jacket (Insulation) Thickness	0.23 mm
Jacket (Insulation) Thickness	0.009 in
Jacket Color	Green
Length [x]	500 '
Length [x]	152.4 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 11047
Voltage	600 V
Wire Gauge	10 AWG

Part	Length [x]	Length [x]	Ratings	Voltage	Wire Gauge	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Conductor Material
CnC Tech, LLC 11047-10-1-0500-005-1-TS	500 '	152.4 m	UL Style 11047	600 V	10 AWG	Polyphenylene Ether (PPE)	Hook-Up	19	0.0092 in	0.09 in	2.29 mm	0.23 mm	0.009 in	105 ░C	-10 °C	Blue	Copper Tinned
CnC Tech, LLC 11047-10-1-0500-007-1-TS	500 '	152.4 m	UL Style 11047	600 V	10 AWG	Polyphenylene Ether (PPE)	Hook-Up	19	0.0092 in	0.09 in	2.29 mm	0.23 mm	0.009 in	105 ░C	-10 °C	Green	Copper Tinned
CnC Tech, LLC 11047-10-1-0500-003-1-TS	500 '	152.4 m	UL Style 11047	600 V	10 AWG	Polyphenylene Ether (PPE)	Hook-Up	19	0.0092 in	0.09 in	2.29 mm	0.23 mm	0.009 in	105 ░C	-10 °C	Yellow	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 1.95

General part information

10 AWG Hook-Up Wire 19/0.0092" Green 600V 500.0' (152.4m)
