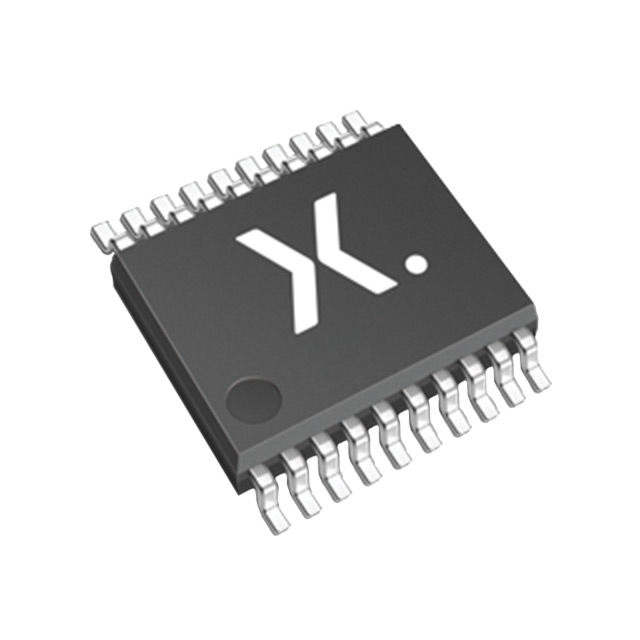

74ABT244PW,118

Active

Freescale Semiconductor - NXP

IC BUFF NON-INVERT 5.5V 20TSSOP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC BUFF NON-INVERT 5.5V 20TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT244PW,118

Current - Output High, Low [custom]	64 mA
Current - Output High, Low [custom]	32 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	4
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	20-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Supplier Device Package	20-TSSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Number of Elements	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Bits per Element	Output Type	Logic Type	Supplier Device Package	Package / Case [y]	Package / Case [y]	Package / Case [x]
Freescale Semiconductor - NXP 74ABT244N,602
Freescale Semiconductor - NXP 74ABT244DB,118	2	64 mA	32 mA	85 °C	-40 °C	20-SSOP	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-SSOP
Freescale Semiconductor - NXP 74ABT244D,623	2	64 mA	32 mA	85 °C	-40 °C	20-SOIC	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-SO	0.295 in	7.5 mm
Freescale Semiconductor - NXP 74ABT244DB,112	2	64 mA	32 mA	85 °C	-40 °C	20-SSOP	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-SSOP
Freescale Semiconductor - NXP 74ABT244PW,118	2	64 mA	32 mA	85 °C	-40 °C	20-TSSOP	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-TSSOP	4.4 mm		0.173 in
Freescale Semiconductor - NXP 74ABT244DB,118	2	64 mA	32 mA	85 °C	-40 °C	20-SSOP	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-SSOP
Freescale Semiconductor - NXP 74ABT244PW,112	2	64 mA	32 mA	85 °C	-40 °C	20-TSSOP	4.5 V	5.5 V	Surface Mount	4	3-State	Buffer Non-Inverting	20-TSSOP	4.4 mm		0.173 in
Freescale Semiconductor - NXP 74ABT244D,623

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
