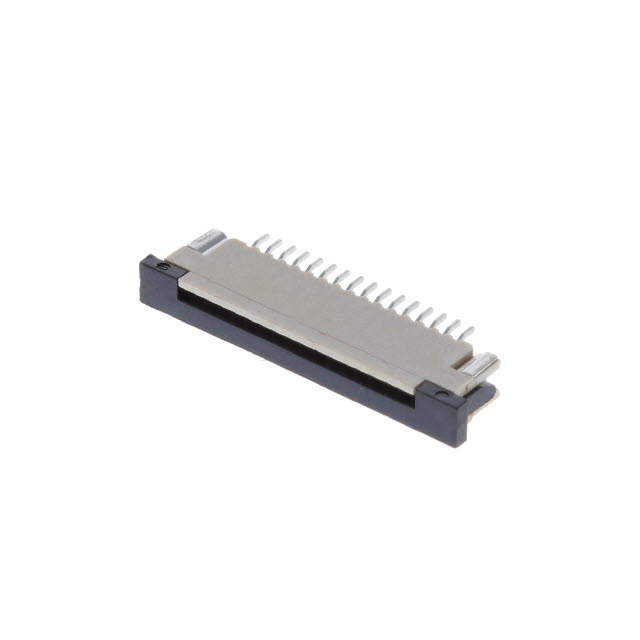

ZF1-16-01-T-WT
ActiveSamtec Inc.
CONN FFC BOTTOM 16POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
ZF1-16-01-T-WT
ActiveSamtec Inc.
CONN FFC BOTTOM 16POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF1-16-01-T-WT |
|---|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.9 A |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 0.118 in |
| Height Above Board | 3 mm |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.43 | |
| 50 | $ 1.11 | |||
| 100 | $ 0.89 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.71 | |||
Description
General part information
ZF1-16 Series
16 Position FFC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
