A98100-037

Active

Omnetics

CABLE ASSY D-MIC-D 37P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-MIC-D 37P 457.2MM

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type	Shielding	1st Connector	2nd Connector	Length [x]	Length [x]	Color	Contact Type	Number of Rows	Flange Feature	Current Rating (Amps)	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Type	Connector Style	Contact Form	Dielectric Material
Omnetics A98100-037	37	50 µin	1.27 µm	Gold	D-Type Micro-D	Unshielded	Plug Male Pins	Individual Wire Leads	457.2 mm	1.5 ft	Individual Multiple
Omnetics A98000-037	37	50 µin	1.27 µm	Gold								Signal	2	Housing/Shell (Unthreaded)	3 A	Aluminum Electroless Nickel Plated	Copper Alloy	-55 °C	125 °C	Free Hanging (In-Line)	0.05	0.05	Male Pins Plug	D-Type Micro-D	Stamped	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

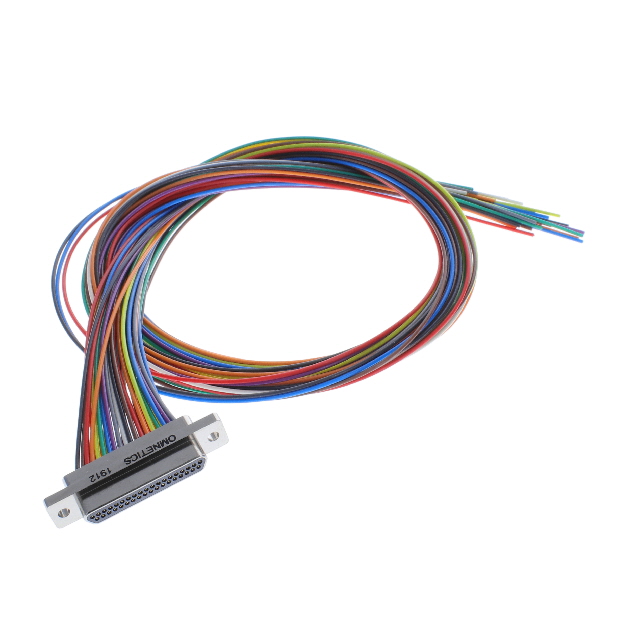

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
