19628160427

Active

HARTING Technology Group

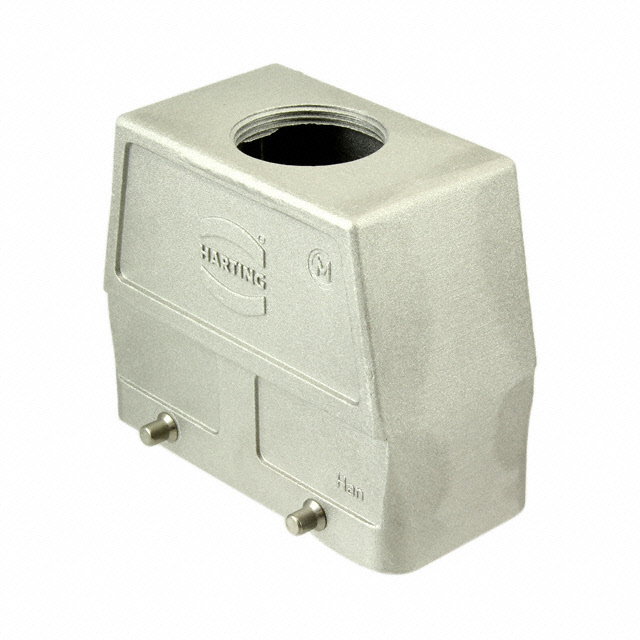

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	19628160427

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	M32

Part	Style	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection	Connector Type	Size	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
HARTING Technology Group 19628160431	Side and Top Entry	M25 M32	200 °C	-40 °C	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	16 B	Locking Clip (2) on Base Bottom	2.976 "	43 mm	1.693 in	3.681 "	93.5 mm	75.6 mm
HARTING Technology Group 19628160430
HARTING Technology Group 19628160427	Top Entry	M32	125 °C	-40 °C	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Hood	16 B	Locking Clip (2) on Base Bottom	2.992 in	43 mm	1.693 in	3.681 "	93.5 mm	76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 16B IP65 - Dust Tight, Water Resistant
