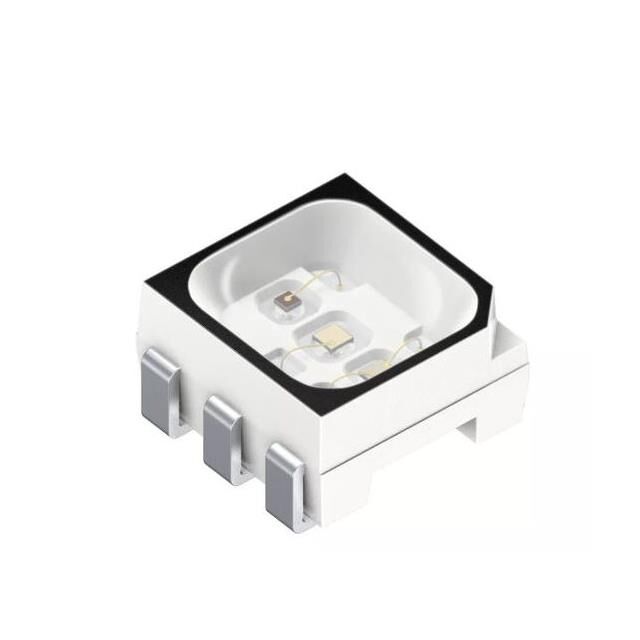

KRTBLSLPS1.32-VUVV-EQ+BTBU-LU+TWTZ-LS-O

Obsolete

ams-OSRAM USA INC.

LED RGB DIFFUSED 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

KRTBLSLPS1.32-VUVV-EQ+BTBU-LU+TWTZ-LS-O

Obsolete

ams-OSRAM USA INC.

LED RGB DIFFUSED 6PLCC SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KRTBLSLPS1.32-VUVV-EQ+BTBU-LU+TWTZ-LS-O

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max]	2.24 mm
Lens Size [x]	2.8 mm
Lens Size [y]	2.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	1025 mcd
Millicandela Rating [custom]	457.5 mcd
Millicandela Rating [custom]	2351 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	3.3 mm
Size / Dimension [y]	3.1 mm
Supplier Device Package	6-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	2.05 V
Voltage - Forward (Vf) (Typ) [custom]	2.65 V
Voltage - Forward (Vf) (Typ) [custom]	2.85 V
Wavelength - Dominant [custom]	621 nm
Wavelength - Dominant [custom]	532 nm
Wavelength - Dominant [custom]	467 nm
Wavelength - Peak [custom]	462 nm
Wavelength - Peak [custom]	634 nm
Wavelength - Peak [custom]	526 nm

KRTBLSLPS1.32 Series

Part	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Package / Case	Lens Size [y]	Lens Size [x]	Color	Configuration	Lens Style	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-JW+TWTZ-L1-OX	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VU-EQ+BTBU-L8+TWTZ-L1-B-XX	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TWTZ-L1-B	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVV-EQ+BTBU-LU+TWTZ-LS-O	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVW-EQ+BUBV-D8+TWTZ-L1-B	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVW-EQ+BTBV-R8+TWTZ-P1-OX	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TWTZ-L1-O	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm
ams-OSRAM USA INC. KRTBLSLPS1.32-VU-EQ+AYBU-J8+TWTZ-P1-XX	462 nm	634 nm	526 nm	20 mA	20 mA	20 mA	6-PLCC	1025 mcd	457.5 mcd	2351 mcd	Surface Mount	2.24 mm	3.3 mm	3.1 mm	120 °	Diffused	2.05 V	2.65 V	2.85 V	6-SMD J-Lead	2.6 mm	2.8 mm	Blue Green Red	Independent	Rectangle with Flat Top	621 nm	532 nm	467 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

KRTBLSLPS1.32 Series

Red, Green, Blue (RGB) 621nm Red, 532nm Green, 467nm Blue LED Indication - Discrete 2.05V Red, 2.65V Green, 2.85V Blue 6-SMD, J-Lead
