1944783

Active

Phoenix Contact

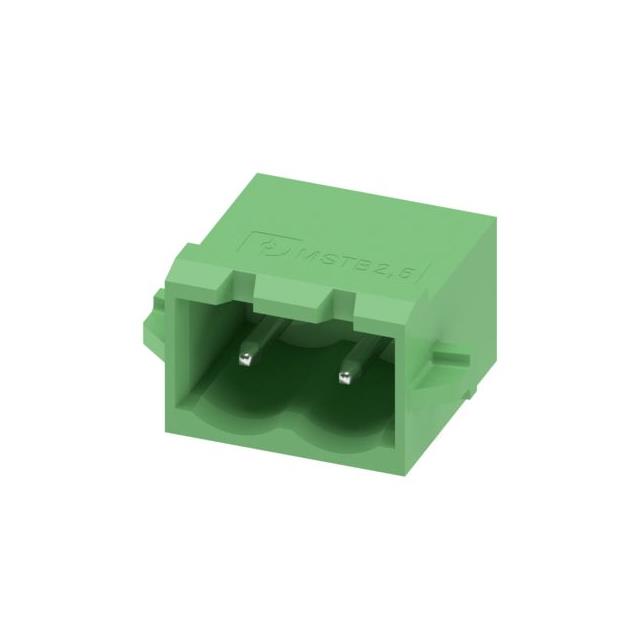

PLUGGABLE TERMINAL BLOCKS 2 POS 5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1944783

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	12 A
Features	Locking Ramp
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.61 mm
Insulation Height	0.339 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header

Part	Type	Number of Positions	Voltage - IEC	Contact Mating Finish	Header Orientation	Housing Material	Material Flammability Rating	Positions Per Level	Mounting Type	Features	Termination Style	Current - IEC	Insulation Height	Insulation Height	Number of Levels	Pitch [x]	Pitch [x]	Color	Contact Tail Length	Contact Tail Length	Voltage - UL	Current - UL
Phoenix Contact 1944783	Header Male Pins Shrouded (4 Side)	2	400 V	Tin	90° Right Angle	Polybutylene Terephthalate (PBT)	UL94 V-0	2	Through Hole	Locking Ramp	Solder	12 A	8.61 mm	0.339 "	1	5 mm	0.197 in	Green	3.5 mm	0.138 in	300 V
Phoenix Contact 1758649	Header Male Pins Shrouded (4 Side)	19	250 V	Tin	90° Right Angle			19	Through Hole		Solder	12 A	8.61 mm	0.339 "	1	5.08 mm	0.2 in	Black	3.5 mm	0.138 in
Phoenix Contact 1923759	Header Male Pins Shrouded (4 Side)	2	400 V	Tin	90° Right Angle	Polyamide (PA) Nylon	UL94 V-0	2	Through Hole		Solder	16 A	8.61 mm	0.339 "	1	5 mm	0.197 in	Green	3.5 mm	0.138 in	300 V	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
