Technical Specifications
Parameters and characteristics for this part
| Specification | 2AM154P1011-1-H |
|---|---|
| Connector Style | A 22 |
| Connector Type | Header, Male Pins |
| Connector Usage | CompactPCI |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Current Rating (Amps) | 1 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Positions | 154 |
| Number of Positions Loaded | All |
| Number of Rows | 2, 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2AM154 Series

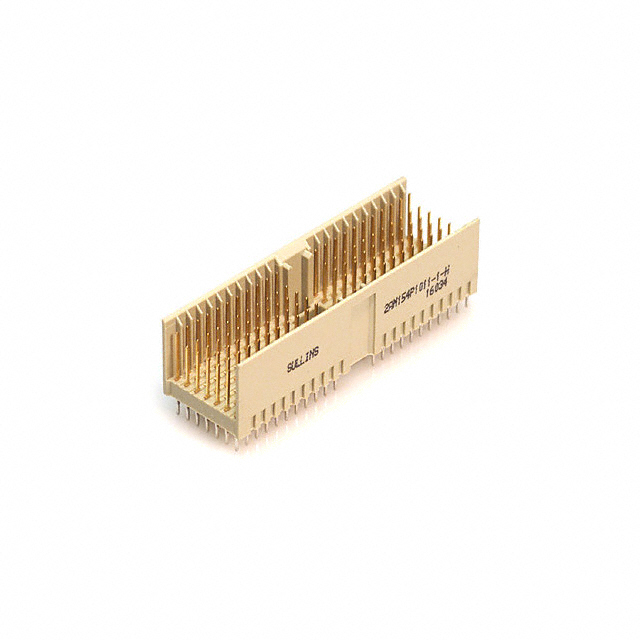

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
