1771004

Active

Phoenix Contact

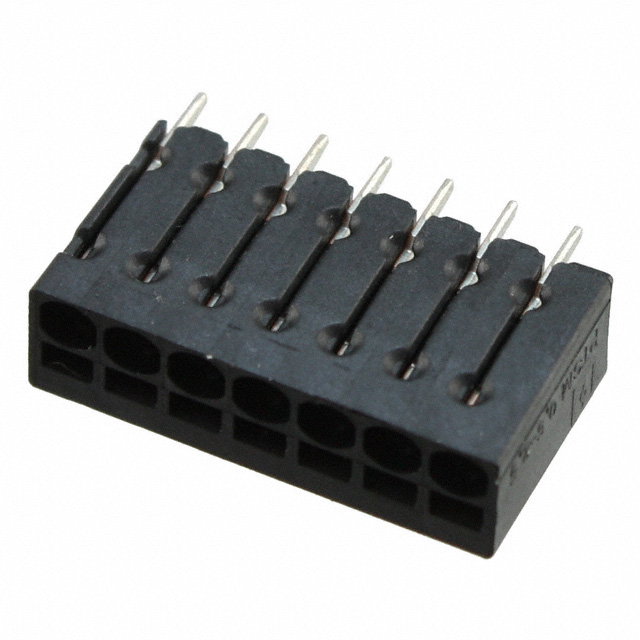

FIXED TERMINAL BLOCKS PTSM 0,5/ 7-2,5-V THR R44

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS PTSM 0,5/ 7-2,5-V THR R44

Technical Specifications

Parameters and characteristics for this part

Specification	1771004

Color	Black
Current	5 A
Housing Material	Liquid Crystal Polymer (LCP)
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Positions Per Level	7
Voltage	150 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks PTSM 0,5/ 7-2,5-V THR R44

Part	Mounting Type	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Color	Voltage	Positions Per Level	Mating Orientation	Current	Number of Levels	Housing Material
Phoenix Contact 1771004	Through Hole	Screwless - Spring Cage Tension Clamp	20 AWG	26 AWG	0.098 in	2.5 mm	Black	150 V	7	Vertical with Board	5 A	1	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks PTSM 0,5/ 7-2,5-V THR R44
