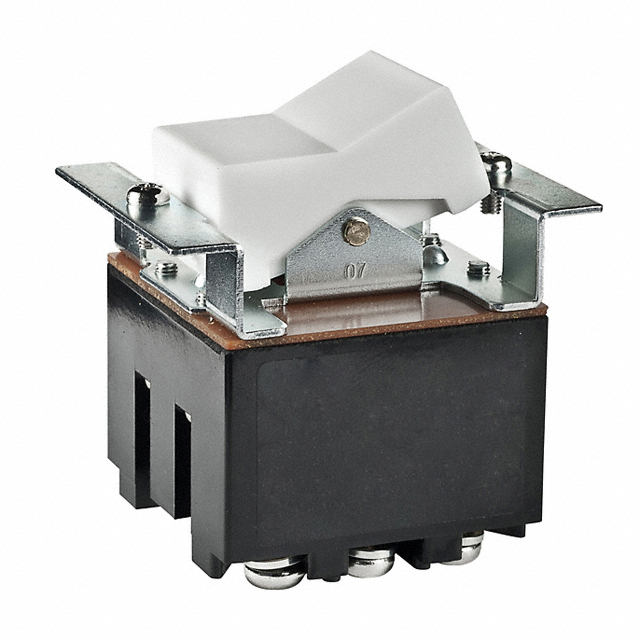

SW3832D/UC

Obsolete

NKK Switches

SWITCH ROCKER 3PDT 30A 30V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER 3PDT 30A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	SW3832D/UC

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	3PDT
Color - Actuator/Cap	White
Electrical Life	25000 Steps
Mounting Type	Panel Mount, Flange
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	On-On
Termination Style	Screw Terminal
Voltage Rating - DC	30 V

Part	Circuit	Current Rating (Amps)	Approval Agency	Actuator Type	Color - Actuator/Cap	Termination Style	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Electrical Life	Switch Function
NKK Switches SW3832/A	3PDT	30 A	CSA UL	Concave (Standard V)	White	Screw Terminal	30 V	125 V	No Marking	Flange Panel Mount	-10 °C	158 °F	25000 Steps	On-On
NKK Switches SW3832D/UC	3PDT		CSA UL	Concave (Standard V)	White	Screw Terminal	30 V		No Marking	Flange Panel Mount	-10 °C	158 °F	25000 Steps	On-On
NKK Switches SW3832/U	3PDT	30 A	CSA UL	Concave (Standard V)	White	Screw Terminal	30 V	125 V	No Marking	Flange Panel Mount	-10 °C	158 °F	25000 Steps	On-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.60

General part information

Rocker Switch 3PDT 30A (DC) Panel Mount, Flange
