2DB52SBR

Active

ITT Cannon, LLC

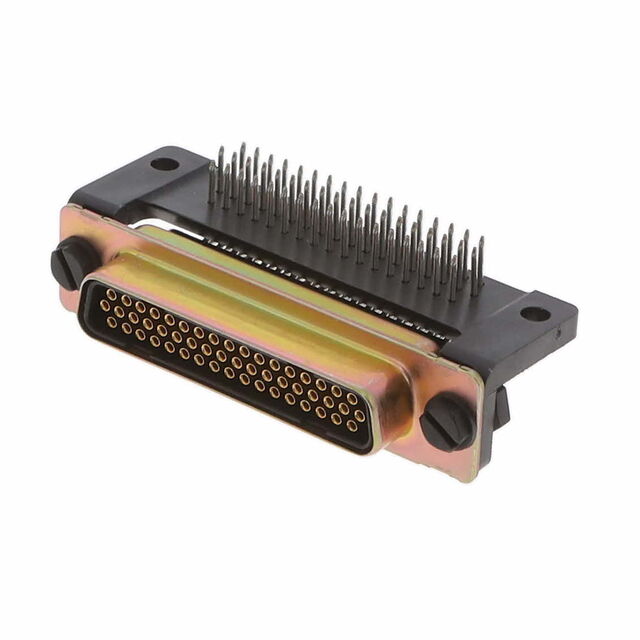

CONN D-SUB RCPT 52POS R/A SLDR

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN D-SUB RCPT 52POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	2DB52SBR

Connector Style	Double Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Dielectric Material	Glass Filled, Polyamide (PA), Nylon
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Right Angle
Number of Positions	52
Number of Rows	3
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout	(DB, B)
Shell Size, Connector Layout	3
Termination	Solder

Part	Number of Positions	Number of Rows	Flange Feature [custom]	Flange Feature [custom]	Dielectric Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Shell Material, Finish	Connector Type	Note	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Material	Contact Finish	Termination	Flange Feature	Mounting Type
ITT Cannon, LLC 2DB52P-F173-F0	52	3	Cable Side	Male Jackscrew (4-40)	Glass Filled Nylon Polyamide (PA)	(DB B)	3	D-Sub Double Density	Steel Yellow Chromate Plated Cadmium	Plug for Male Contacts	Contacts Not Included	Black	85 °C	-55 °C	Signal
ITT Cannon, LLC 2DB52SBR	52	3			Glass Filled Nylon Polyamide (PA)	(DB B)	3	D-Sub Double Density	Steel Yellow Chromate Plated Cadmium	Receptacle Female Sockets					Signal	Copper Alloy	Gold	Solder	Housing/Shell (Unthreaded)	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

52 Position D-Sub, Double Density Receptacle, Female Sockets Connector
