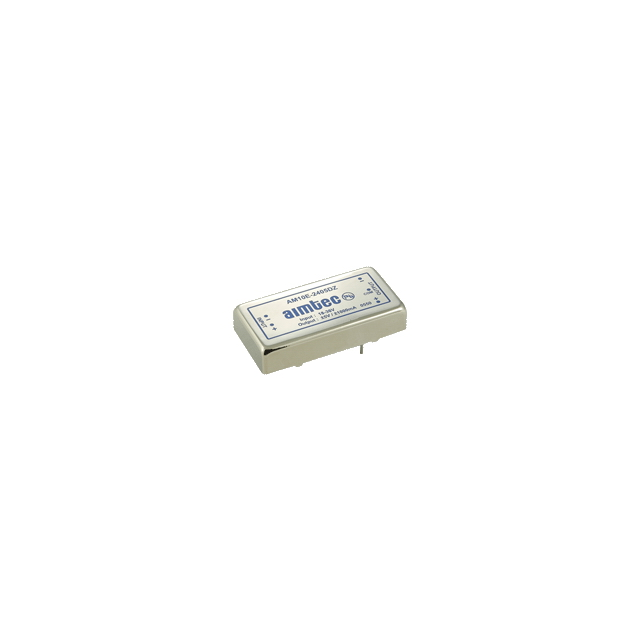

AM10E-2415DZ

Unknown

aimtec

DC DC CONVERTER +/-15V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10E-2415DZ

Unknown

aimtec

DC DC CONVERTER +/-15V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM10E-2415DZ

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	333 mA
Current - Output (Max)	333 mA
Efficiency	84 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

AM10E Series

Part	Package / Case	Package / Case	Applications	Voltage - Isolation	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Output 1	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 2	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Current - Output (Max)	Efficiency	Standard Number
aimtec AM10EW-4805SH30-NZ	5 Leads	6-DIP Module	ITE (Commercial)	3000 V	Through Hole	2 A	1.04 in	26.5 mm	2.03 in	0.47 "	51.5 mm	12 mm	1	18 V	10 W	75 V	CE cURus	5 V	Isolated Module	85 °C	-40 °C
aimtec AM10EW-2405SH30-NZ	5 Leads	6-DIP Module	ITE (Commercial)	3000 V	Through Hole	2 A	1.04 in	26.5 mm	2.03 in	0.47 "	51.5 mm	12 mm	1	9 V	10 W	36 V	CE cURus UL	5 V	Isolated Module	85 °C	-40 °C	Remote On/Off
aimtec AM10EW-4805DH30-NZ			ITE (Commercial)	3000 V	Through Hole		1.04 in	26.5 mm	2.03 in	0.47 "	51.5 mm	12 mm	2	18 V	10 W	75 V	CE cURus UL		Isolated Module	85 °C	-40 °C	Remote On/Off	-5 V	5 V	-5 V	1 A	1 A
aimtec AM10E-1207DZ			ITE (Commercial)	1.5 kV	Through Hole		25.4 mm	25.4 mm	2 in	0.4 "	50.8 mm	10.2 mm	2	9 V	10 W	18 V	CE cULus cURus EN IEC UL		Isolated Module	85 °C	-40 °C		-7.2 V	7.2 V	-7.2 V	690 mA		83 %	62368-1
aimtec AM10EW-11012SH22-NZ		4-DIP Module	ITE (Commercial)	2250 VDC	Through Hole	833 mA	25.4 mm	25.4 mm	2 in	0.46 in	50.8 mm	11.8 mm	1	40 V	10 W	160 V	CE cURus	12 V	Isolated Module	85 °C	-40 °C							84 %
aimtec AM10E-2415DZ		5-DIP Module	ITE (Commercial)	1.5 kV	Through Hole		25.4 mm	25.4 mm	2 in	0.4 "	50.8 mm	10.2 mm	2	18 V	10 W	36 V	CE cURus	15 V	Isolated Module	85 °C	-40 °C		-15 V			333 mA	333 mA	84 %
aimtec AM10E-2424SZ	4 Lead	5-DIP Module	ITE (Commercial)	1.5 kV	Through Hole	416 mA	25.4 mm	25.4 mm	2 in	0.4 "	50.8 mm	10.2 mm	1	18 V	10 W	36 V	CE cURus	24 V	Isolated Module	85 °C	-40 °C							86 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 23.43
		5	$ 22.96
		10	$ 22.50
		24	$ 22.05
		48	$ 21.61
		72	$ 21.18
		96	$ 20.76

Description

General part information

AM10E Series

Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 18V - 36V Input
