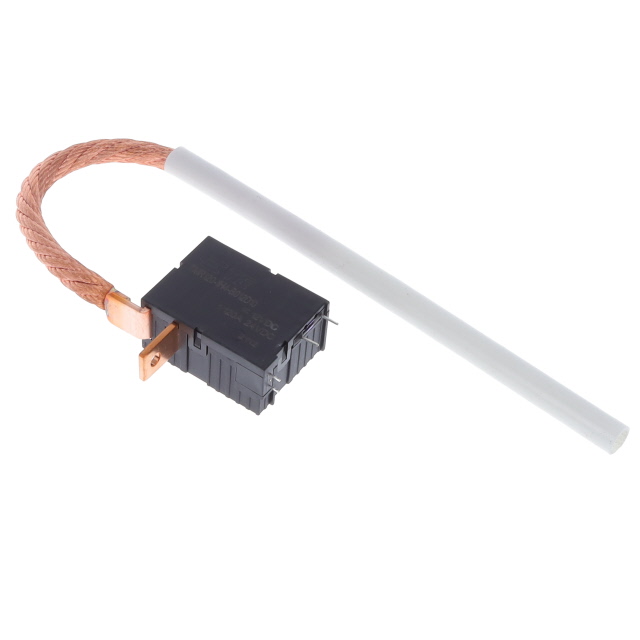

TMR120-1H4-B012D10,03000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 120A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMR120-1H4-B012D10,03000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 120A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR120-1H4-B012D10,03000 |
|---|---|
| Coil Current | 250 mA |
| Coil Insulation | Class F |
| Coil Resistance | 48 Ohms |
| Coil Type | Latching, Single Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 120 A |
| Mounting Type | Free Hanging |
| Must Operate Voltage | 9.6 VDC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 24 VDC |
| Termination Style | PC Pin, Stud, Solder Turret |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.18 | |
| 16 | $ 22.97 | |||
| 32 | $ 21.76 | |||
| 48 | $ 21.29 | |||
Description
General part information
TMR120 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Free Hanging
