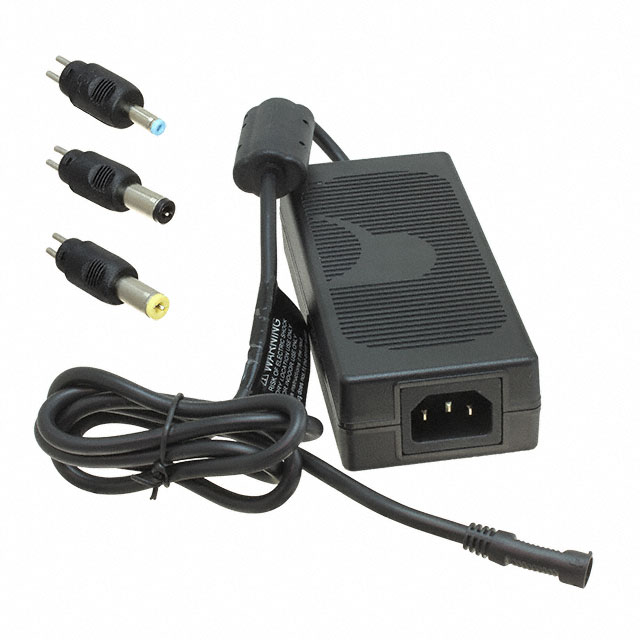

TR9CH5000T00-IM(R6B)
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 18V 90W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR9CH5000T00-IM(R6B)
ActiveGlobTek, Inc.
AC/DC DESKTOP ADAPTER 18V 90W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR9CH5000T00-IM(R6B) |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension [x] | 149.3 mm |
| Size / Dimension [x] | 5.88 in |
| Size / Dimension [y] | 62.8 mm |
| Size / Dimension [y] | 2.47 in |
| Size / Dimension [z] | 1.34 in |
| Size / Dimension [z] | 34 mm |
| Standard Number | 1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.67 | |
| 5 | $ 42.00 | |||
| 20 | $ 39.07 | |||
| 40 | $ 37.69 | |||
| 60 | $ 36.90 | |||
| 100 | $ 35.93 | |||
| 260 | $ 34.19 | |||
Description
General part information
TR9CH5000 Series
18V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
