9G1224G101

Active

Sanyo Denki America Inc.

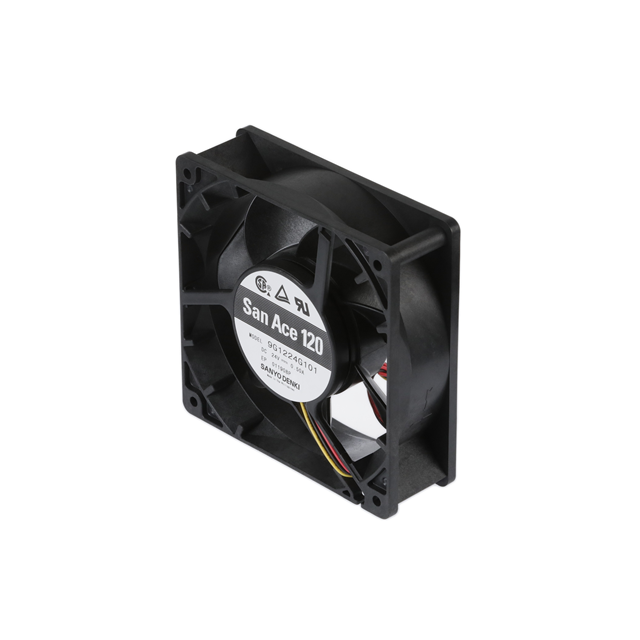

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

9G1224G101

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G1224G101

Air Flow	137 CFM
Air Flow	3.84 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	12 W
RPM	3600 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.542 in H2O
Static Pressure	135 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	330.22 g
Weight	0.728 lb
Width [y]	38 mm

9G1224 Series

Part	Lifetime @ Temp.	Bearing Type	Voltage - Rated	Power (Watts)	Current Rating (Amps)	Weight	Weight	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Fan Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	RPM	Air Flow	Air Flow	Termination	Features	Static Pressure	Static Pressure	Width [y]	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Air Flow
Sanyo Denki America Inc. 9G1224G101	40000 Hrs	Ball	24 VDC	12 W	0.5 A	330.22 g	0.728 lb	49 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	3600 RPM	137 CFM	3.84 m³/min	3 Wire Leads	Speed Sensor (Tach)	0.542 in H2O	135 Pa	38 mm	Plastic
Sanyo Denki America Inc. 9G1224E1D011	40000 Hrs	Ball	24 VDC	8.16 W	0.34 A	330.22 g	0.728 lb	46 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	3100 RPM	118 CFM	3.3 m³/min	3 Wire Leads	Locked Rotor Sensor	0.401 in H2O	100 Pa	38 mm	Plastic
Sanyo Denki America Inc. 9G1224H102	40000 Hrs	Ball	24 VDC	5.28 W	0.22 A	330.22 g	0.728 lb	39 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	2600 RPM			2 Wire Leads		0.283 in H2O	70.5 Pa	38 mm	Plastic	27.6 VDC	14 VDC
Sanyo Denki America Inc. 9G1224F101	40000 Hrs	Ball	24 VDC	3.84 W		330.22 g	0.728 lb	36 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	2280 RPM	87 CFM	2.44 m³/min	3 Wire Leads	Speed Sensor (Tach)	0.283 in H2O	70.5 Pa	38 mm	Plastic	27.6 VDC	14 VDC
Sanyo Denki America Inc. 9G1224H4021	40000 Hrs	Ball	24 VDC		0.17 A	239.95 g	0.529 lb	40 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	2850 RPM	88 CFM	2.46 m³/min	2 Wire Leads		0.257 in H2O	64 Pa	25 mm	Plastic	27.6 VDC	12 VDC
Sanyo Denki America Inc. 9G1224E4011	40000 Hrs	Ball	24 VDC	8.88 W	370 mA	239.95 g	0.529 lb	48 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	3650 RPM	115 CFM	3.22 mł/min	3 Wire Leads	Speed Sensor (Tach)	0.394 in H2O	98.1 Pa	25 mm	Plastic
Sanyo Denki America Inc. 9G1224H101	40000 Hrs	Ball	24 VDC	5.28 W	0.22 A	330.22 g	0.728 lb	39 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	2600 RPM			3 Wire Leads	Speed Sensor (Tach)	0.283 in H2O	70.5 Pa	38 mm	Plastic	27.6 VDC	14 VDC
Sanyo Denki America Inc. 9G1224M401	40000 Hrs	Ball	24 VDC	1.92 W		239.95 g	0.529 lb	29 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	1950 RPM		59 CFM	3 Wire Leads	Speed Sensor (Tach)	0.124 in H2O	30.9 Pa	25 mm	Plastic			1.65 m³/min
Sanyo Denki America Inc. 9G1224P4E01	40000 Hrs	Ball	24 VDC	8.88 W	370 mA	239.95 g	0.529 lb	48 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	120 mm	120 mm	3650 RPM	115 CFM	3.22 mł/min	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.394 in H2O	98.1 Pa	25 mm	Plastic
Sanyo Denki America Inc. 9G1224M4021	40000 Hrs	Ball	24 VDC	1.92 W		239.95 g	0.529 lb	29 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	Tubeaxial	CSA TUV UL	119 mm	119 mm	1950 RPM	59 CFM	1.65 mł/min	2 Wire Leads		0.124 in H2O	30.9 Pa	25 mm	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 31.43
		21	$ 28.71
		42	$ 27.62
		63	$ 25.80
		105	$ 23.80
		252	$ 23.44

Description

General part information

9G1224 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 137.0 CFM (3.84m³/min) 3 Wire Leads
