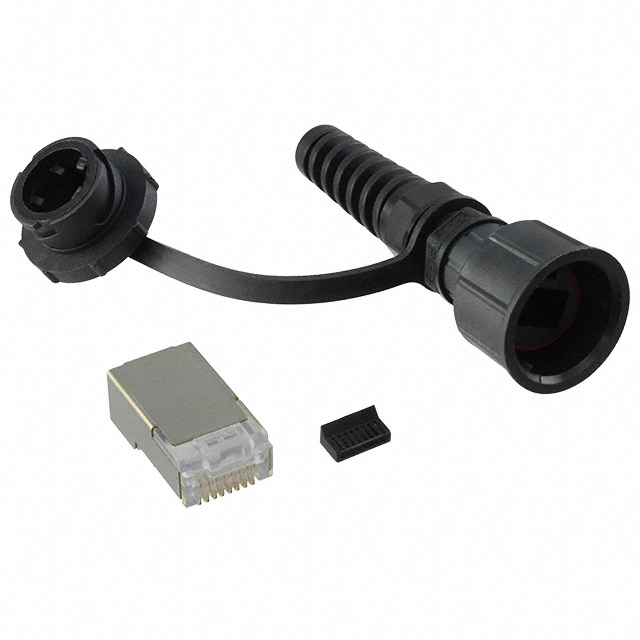

SS-39400-003
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD PLUG 8P8C CAT5E SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsUTP, FTP Install Sheet
SS-39400-003
ActiveBEL MAGNETIC SOLUTIONS
CONN MOD PLUG 8P8C CAT5E SHLD
Deep-Dive with AI
DocumentsUTP, FTP Install Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-39400-003 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Features | Circular Threaded Coupling, Strain Relief, Cover |
| Housing Material | Plastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat5e |
| Shield Material | Copper Alloy |
| Shielding | Shielded |
| Termination | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.62 | |
| 10 | $ 10.30 | |||
| 25 | $ 9.90 | |||
| 50 | $ 9.51 | |||
| 100 | $ 8.98 | |||
| 250 | $ 8.19 | |||
| 500 | $ 7.66 | |||
| 1000 | $ 7.03 | |||
Description
General part information
SS-39400 Series
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5e IDC
