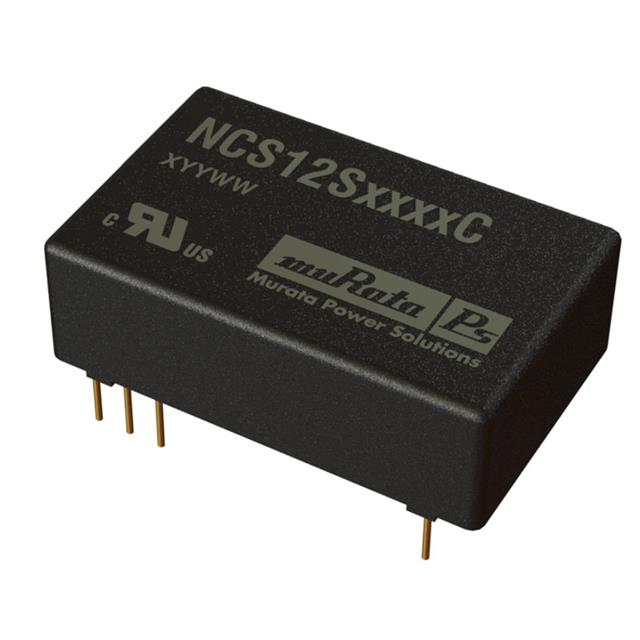

NCS12S1215C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 12W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCS12S1215C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 15V 12W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCS12S1215C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 800 mA |
| Efficiency | 85.5 % |
| Features | OTP, UVLO, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 10.5 mm |
| Size / Dimension [z] | 0.41 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 30.46 | |
| 5 | $ 30.31 | |||
| 10 | $ 30.09 | |||
| 25 | $ 29.76 | |||
| 50 | $ 29.03 | |||
| 100 | $ 27.57 | |||
| 250 | $ 25.80 | |||
Description
General part information
NCS12S Series
Isolated Module DC DC Converter 1 Output 15V 800mA 9V - 36V Input
Documents
Technical documentation and resources
