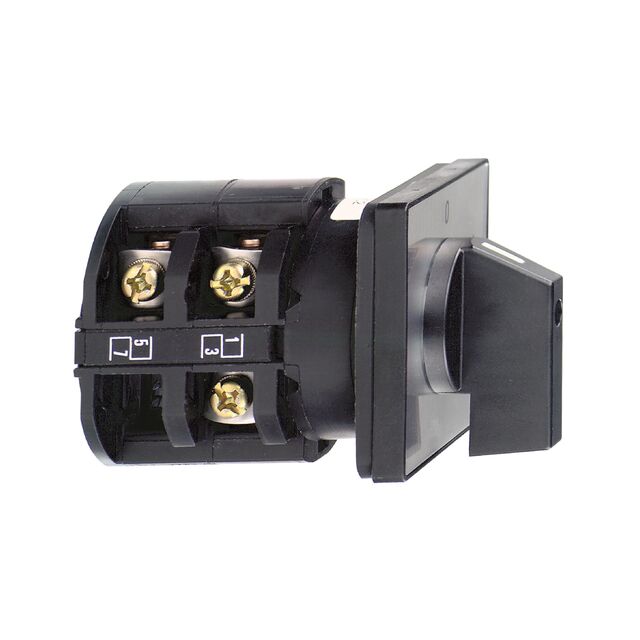

K30H014UP

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH ROTARY 2POS 30A

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH ROTARY 2POS 30A

Technical Specifications

Parameters and characteristics for this part

Specification	K30H014UP

Actuator Type	Knob
Angle of Throw	30 °
Circuit per Deck [custom]	4PDT
Contact Timing	Not Specified
Index Stops	Fixed
Number of Decks [custom]	1
Number of Positions	2
Panel Cutout Dimensions [diameter]	22 mm
Termination Style	Screw Terminal

Part	Index Stops	Circuit per Deck [custom]	Actuator Type	Number of Decks [custom]	Panel Cutout Dimensions [diameter]	Number of Positions	Contact Timing	Termination Style	Angle of Throw
SQUARE D BY SCHNEIDER ELECTRIC K30H014UP	Fixed	4PDT	Knob	1	22 mm	2	Not Specified	Screw Terminal	30 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 314.00

General part information

Rotary Switch 2 Position 4PDT AC Panel Mount
