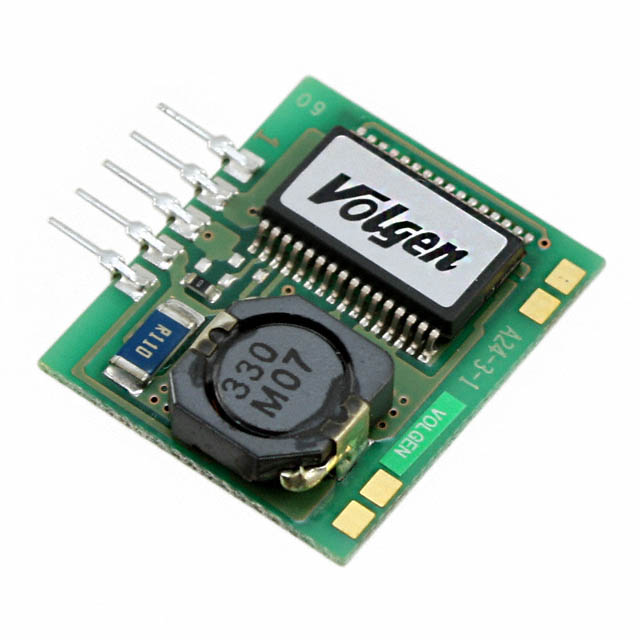

VSA24-3.3S1R2
ActiveVolgen + Furuno
DC DC CONVERTER 3.3V 4W
Deep-Dive with AI
Search across all available documentation for this part.
VSA24-3.3S1R2
ActiveVolgen + Furuno
DC DC CONVERTER 3.3V 4W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSA24-3.3S1R2 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.2 A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [z] | 24 mm |
| Size / Dimension [z] | 0.94 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 24.98 | |
Description
General part information
VSA24 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1.2A 9V - 36V Input
