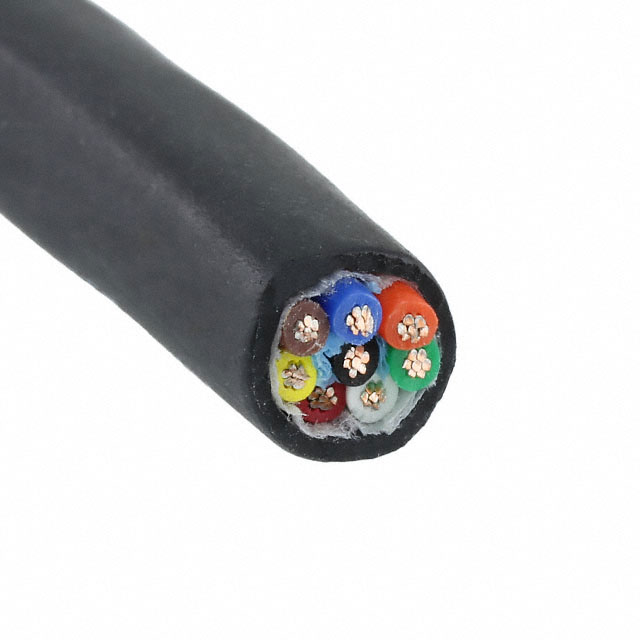

25058 BK199

Active

ALPHA WIRE

CABLE 8COND 20AWG BLACK FEET

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 20AWG BLACK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	25058 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.302 in
Jacket (Insulation) Diameter [diameter]	7.67 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Spool Size	1000 ft
Spool Size	304.8 m
Voltage	300 V
Wire Gauge	20 AWG

Part	Number of Conductors	Ratings	Spool Size	Spool Size	Wire Gauge	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Jacket Color	Features	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Length
ALPHA WIRE 25058 BK199	8	ISO 10993 UL Style 20668	1000 ft	304.8 m	20 AWG	Polyurethane (PU)	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Black	Biological Compatibility Rip Cord	Copper Tinned	28	7	0.302 in	7.67 mm	-30 ░C	90 °C	300 V	Enter Number of Feet in Order Quantity

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Black 20 AWG Enter Number of Feet in Order Quantity
