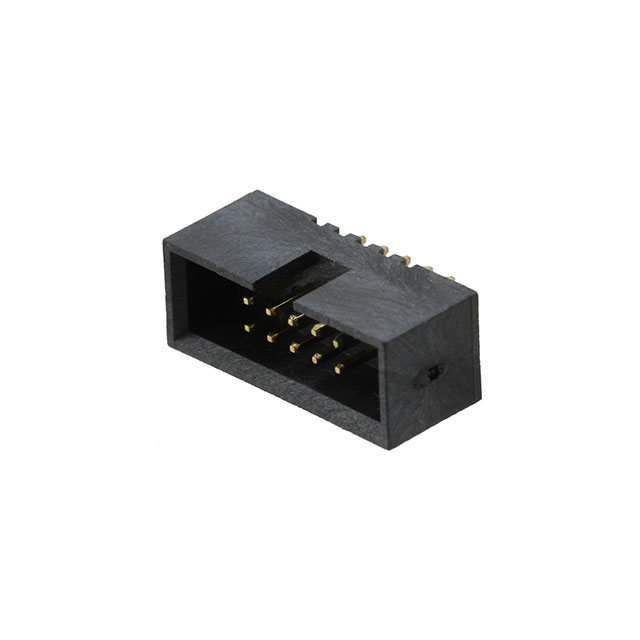

HBHR-B-10-VG

Active

Adam Tech

CONN HEADER VERT 10POS 1.27MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 10POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	HBHR-B-10-VG

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Black
Insulation Height	1.394 in
Insulation Height	35.4 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Insulation Color	Fastening Type	Contact Type	Number of Positions Loaded	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Shape	Voltage Rating	Insulation Height	Insulation Height	Style	Insulation Material	Contact Finish Thickness - Post	Features	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Rows
Adam Tech HBHR-B-40-VG	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	Brass	Black	Push-Pull	Male Pin	All	Gold	0.05 in	1.27 mm	Flash	Square	250 VAC	1.394 in	35.4 mm	Board to Cable/Wire	Thermoplastic	Flash	Polarizing Key	0.091 in	2.3 mm	Gold	40	UL94 V-0	-40 °C	105 ░C	Header	Through Hole	2
Adam Tech HBHR-B-30-VG	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	Brass	Black	Push-Pull	Male Pin	All	Gold	0.05 in	1.27 mm	Flash	Square	250 VAC	1.394 in	35.4 mm	Board to Cable/Wire	Thermoplastic	Flash	Polarizing Key	0.091 in	2.3 mm	Gold	30	UL94 V-0	-40 °C	105 ░C	Header	Through Hole	2
Adam Tech HBHR-B-10-VG	Shrouded - 4 Wall	0.05 in	1.27 mm	Solder	Brass	Black	Push-Pull	Male Pin	All	Gold	0.05 in	1.27 mm	Flash	Square	250 VAC	1.394 in	35.4 mm	Board to Cable/Wire	Thermoplastic	Flash	Polarizing Key	0.091 in	2.3 mm	Gold	10	UL94 V-0	-40 °C	105 ░C	Header	Through Hole	2
