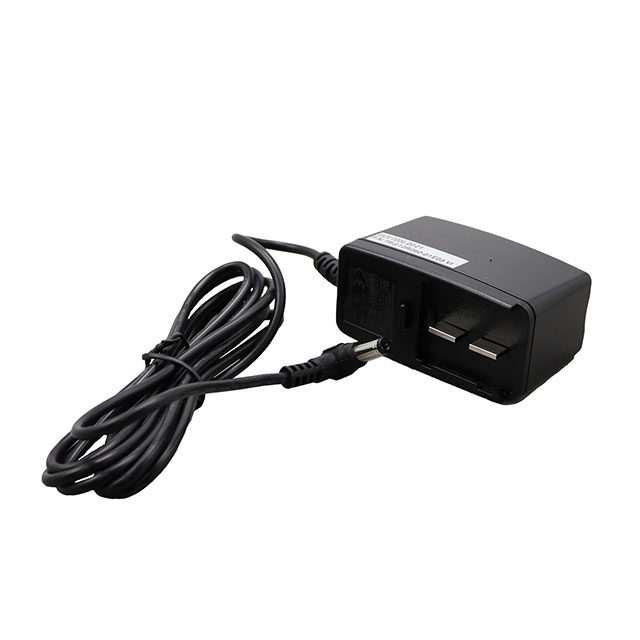

TRG10R060-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 6V 9W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRG10R060-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 6V 9W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRG10R060-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	9 W
Region Utilized	International
Size / Dimension [x]	2.86 "
Size / Dimension [x]	72.6 mm
Size / Dimension [y]	1.4 in
Size / Dimension [y]	35.6 mm
Size / Dimension [z]	1.82 "
Size / Dimension [z]	46.3 mm
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	6 V

TRG10R Series

Part	Power (Watts)	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Weight	Weight	Form	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Input Connector	Efficiency	Voltage - Output	Region Utilized	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	Standard Number
Cincon Electronics Co. LTD TRG10R075-11E03 VI	9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	7.5 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.2 A	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R060-11E03 VI	9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	6 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.5 A	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R240-01E03 VI	9.6 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	24 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	400 mA	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R059-01E03 VI	8.9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A			Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	5.9 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.5 A	CE cULus FCC GS PSE TUV	60950-1 62368-1
Cincon Electronics Co. LTD TRG10R059-11E03 VI	8.9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	5.9 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.5 A	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R136-01E03 VI	10 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	13.6 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	750 mA	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R060-01E03 VI	9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A			Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	6 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.5 A	CE cULus FCC GS PSE TUV	60950-1 62368-1
Cincon Electronics Co. LTD TRG10R075-01E03 VI	9 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A			Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	7.5 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.2 A	CE cULus FCC GS PSE TUV	60950-1 62368-1
Cincon Electronics Co. LTD TRG10R050-11E03 VI	8 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	130.18 g	0.287 lb	Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	5 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.6 A	CE cULus FCC GS PSE TUV
Cincon Electronics Co. LTD TRG10R050-01E03 VI	8 W	Positive Center	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A			Wall Mount (Class II)	70.9 in	1.8 m	1.4 in	1.82 "	35.6 mm	2.86 "	46.3 mm	72.6 mm	ITE (Commercial)	90 VAC	264 VAC	75 mW	Multi-Blade	CoC Tier 2 Level VI	5 V	International	Multi-Blade (Sold Separately)	-20 C	60 °C	1.6 A	CE cULus FCC GS PSE TUV	60950-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.19
		5	$ 14.78
		10	$ 13.96
		25	$ 13.14
		50	$ 12.32
		100	$ 11.50
		250	$ 11.09
		500	$ 10.92

Description

General part information

TRG10R Series

6V 9 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
