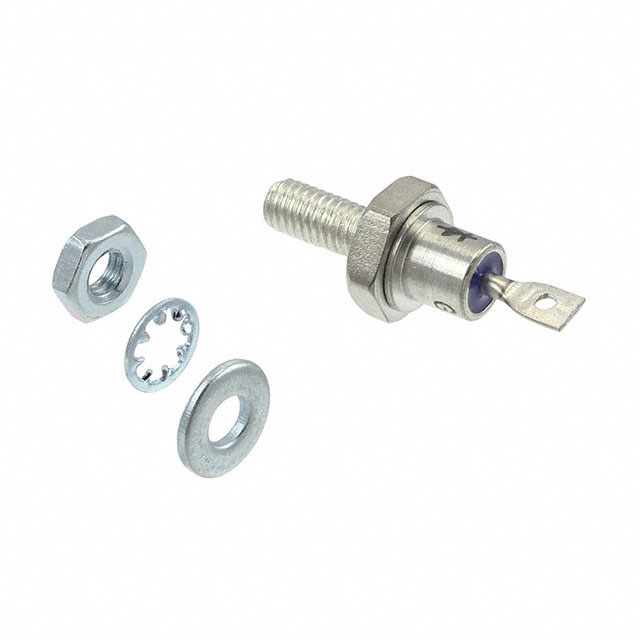

1N3893R

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 600V 12A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 600V 12A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N3893R

Current - Average Rectified (Io)	12 A
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Reverse Recovery Time (trr)	200 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-4
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Current - Average Rectified (Io)	Speed	Package / Case
GeneSiC Semiconductor 1N3893R	150 °C	-65 C	200 ns	DO-4	600 V	1.4 V	Chassis Stud Mount	Reverse Polarity Standard	12 A	200 mA 500 ns	DO-203AA DO-4 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 12A Chassis, Stud Mount DO-4
