3584JM
ObsoleteTexas Instruments

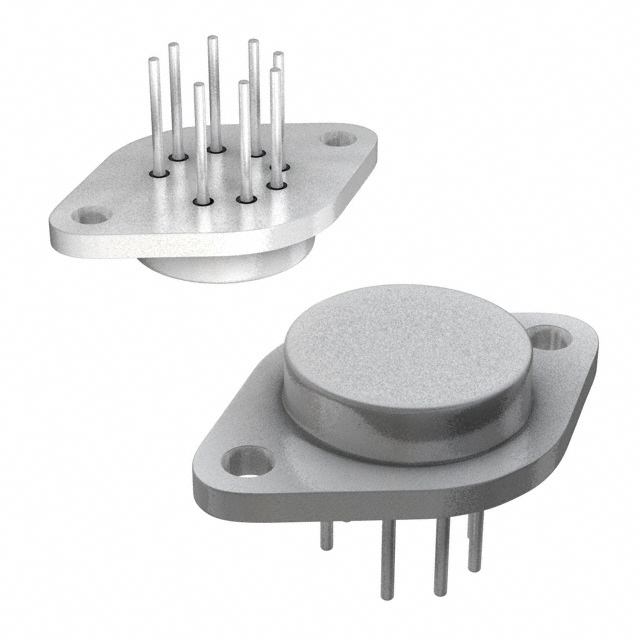

IC OPAMP GP 1 CIRCUIT TO3-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3584JM
ObsoleteTexas Instruments
IC OPAMP GP 1 CIRCUIT TO3-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3584JM |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 20 pA |
| Current - Output / Channel | 15 mA |
| Current - Supply | 6.5 mA |
| Gain Bandwidth Product | 20 MHz |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | TO-3-8 |
| Slew Rate | 150 V/µs |
| Supplier Device Package | TO-3-8 |
| Voltage - Input Offset | 3 mV |
| Voltage - Supply Span (Max) [Max] | 300 V |
| Voltage - Supply Span (Min) [Min] | 140 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2 | $ 218.35 | |
| 2 | $ 218.35 | |||
Description
General part information
3584 Series
General Purpose Amplifier 1 Circuit TO-3-8
