AMSRB1-783.3JZ

Obsolete

aimtec

DC DC CONVERTER 3.3V 3.3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

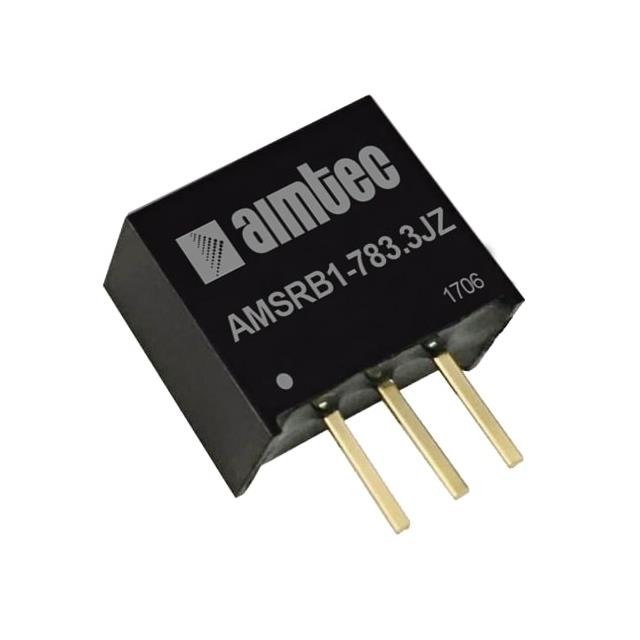

AMSRB1-783.3JZ

Obsolete

aimtec

DC DC CONVERTER 3.3V 3.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMSRB1-783.3JZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	80 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	3.3 W
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.6 mm
Size / Dimension [y]	8 mm
Size / Dimension [y]	0.31 "
Size / Dimension [z]	0.41 "
Size / Dimension [z]	10.4 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	6 V
Voltage - Output 1	3.3 V

AMSRB Series

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Type	Supplier Device Package	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Standard Number
aimtec AMSRB-783.3Z	3-SIP Module	85 °C	-40 °C	75 %	3.3 V	1	ITE (Commercial)	4.5 V	CE	28 V	Non-Isolated PoL Module	3-SIP Module	1.65 W	500 mA	Through Hole	10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm
aimtec AMSRB-7812Z	3-SIP Module	85 °C	-40 °C	90 %	12 V	1	ITE (Commercial)	14 V	CE	28 V	Non-Isolated PoL Module	3-SIP Module	6 W	500 mA	Through Hole	10.2 mm	0.46 in	0.29 "	0.4 "	11.7 mm	7.5 mm	55032 Class B
aimtec AMSRB-7805Z	3-SIP Module	85 °C	-40 °C	80 %	5 V	1	ITE (Commercial)	7 V	CE	28 V	Non-Isolated PoL Module			500 mA	Through Hole	10.2 mm	0.46 in	0.29 "	0.4 "	11.7 mm	7.5 mm
aimtec AMSRB1-7812JZ	3-SIP Module	85 °C	-40 °C	96 %	12 V	1	ITE (Commercial)	16 V		36 V	Non-Isolated PoL Module	3-SIP	12 W	1 A	Through Hole	10.4 mm	0.46 in	0.32 in	0.41 "	11.6 mm	8 mm
aimtec AMSRB1-7809JZ	3-SIP Module	85 °C	-40 °C	89 %	9 V	1	ITE (Commercial)	13 V		36 V	Non-Isolated PoL Module		9 W	1 A	Through Hole	10.4 mm	0.46 in	0.31 "	0.41 "	11.6 mm	8 mm
aimtec AMSRB1-783.3JZ	3-SIP Module	85 °C	-40 °C	80 %	3.3 V	1	ITE (Commercial)	6 V		36 V	Non-Isolated PoL Module		3.3 W	1 A	Through Hole	10.4 mm	0.46 in	0.31 "	0.41 "	11.6 mm	8 mm
aimtec AMSRB-7815Z	3-SIP Module	85 °C	-40 °C	92 %	15 V	1	ITE (Commercial)	17 V	CE	28 V	Non-Isolated PoL Module	3-SIP Module	7.5 W	500 mA	Through Hole	10.2 mm	0.46 in	0.29 "	0.4 "	11.7 mm	7.5 mm	55032 Class B
aimtec AMSRB1-7805JZ	3-SIP Module	85 °C	-40 °C	93 %	5 V	1	ITE (Commercial)	8 V		36 V	Non-Isolated PoL Module	3-SIP	5 W	1 A	Through Hole	10.4 mm	0.46 in	0.32 in	0.41 "	11.6 mm	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.52
		10	$ 3.09
		25	$ 2.94
		50	$ 2.82

Description

General part information

AMSRB Series

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1A 6V - 36V Input
