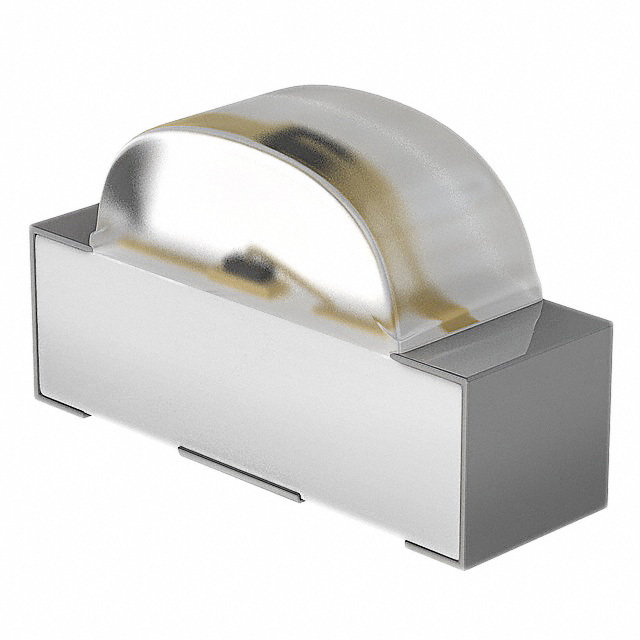

QTLP610CEBTR

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR SMD R/A

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED BLUE CLEAR SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Wavelength - Dominant	Color	Lens Style	Millicandela Rating	Package / Case	Current - Test	Height (Max) [Max] [z]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Configuration	Wavelength - Peak	Mounting Type	Lens Size [x]	Lens Size [y]
Everlight Electronics Co Ltd QTLP610CRAGTR	SMD	624 nm	Red	Rectangle with Domed Top	45 mcd	2-SMD No Lead	20 mA	1.1 mm	Clear	2 V	Colorless	2 mm	3 mm	120 °	Standard	630 nm	Surface Mount Right Angle	2 mm	1 mm
Everlight Electronics Co Ltd QTLP610CIGTR	SMD	525 nm	Green	Rectangle with Domed Top	100 mcd	2-SMD No Lead	20 mA	1.1 mm	Clear	3.5 V	Colorless	2 mm	3 mm	120 °	Standard	520 nm	Surface Mount Right Angle	2 mm	1 mm
Everlight Electronics Co Ltd QTLP610CEBTR	SMD	475 nm	Blue	Rectangle with Domed Top	17 mcd	2-SMD No Lead	20 mA	1.1 mm	Clear	2.95 V	Colorless	2 mm	3 mm	120 °	Standard		Surface Mount Right Angle	2 mm	1 mm
Everlight Electronics Co Ltd QTLP610CYTR	SMD	589 nm	Yellow	Rectangle with Domed Top	45 mcd	2-SMD No Lead	20 mA	1.1 mm	Clear	2 V	Colorless	2 mm	3 mm	120 °	Standard	590 nm	Surface Mount Right Angle	2 mm	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 475nm LED Indication - Discrete 2.95V 2-SMD, No Lead
