M4220 BK001

Active

ALPHA WIRE

AE COAX /1000 FT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ALPHA WIRE

AE COAX /1000 FT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M4220 BK001

Cable Group	RG-108
Cable Type	Twinaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Dielectric Diameter [diameter]	2.01 mm
Dielectric Diameter [diameter]	0.079 "
Impedance	78 Ohms
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	0.56 mm², 20 AWG

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Coverage	Impedance	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Group	Length	Length	Shield Material	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
ALPHA WIRE M4220 BK001	2.01 mm	0.079 "	Braid	-20 C	60 °C	Copper Tinned	85 %	78 Ohms	0.56 mm² 20 AWG	7	28 AWG	RG-108	304.8 m	1000 ft	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	5.97 mm	0.235 in	Twinaxial
ALPHA WIRE M4220 BK002	2.01 mm	0.079 "	Braid	-20 C	60 °C	Copper Tinned	85 %	78 Ohms	0.56 mm² 20 AWG	7	28 AWG	RG-108	152.4 m	6000 in	Copper Tinned	Poly-Vinyl Chloride (PVC)	Black	5.97 mm	0.235 in	Twinaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

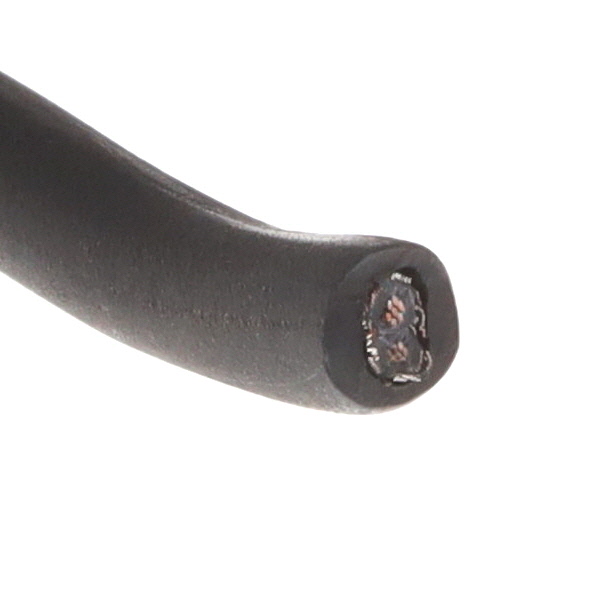

Twinaxial Cable 20 AWG (0.56mm²) RG-108 1000.0' (304.80m) 78 Ohms
