74AHC123ABQ-Q100X
ActiveFreescale Semiconductor - NXP
IC MULTIVIBRATOR 5.1NS 16DHVQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74AHC123ABQ-Q100X
ActiveFreescale Semiconductor - NXP
IC MULTIVIBRATOR 5.1NS 16DHVQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74AHC123ABQ-Q100X |
|---|---|
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Grade | Automotive |
| Independent Circuits | 2 |
| Logic Type | Monostable |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

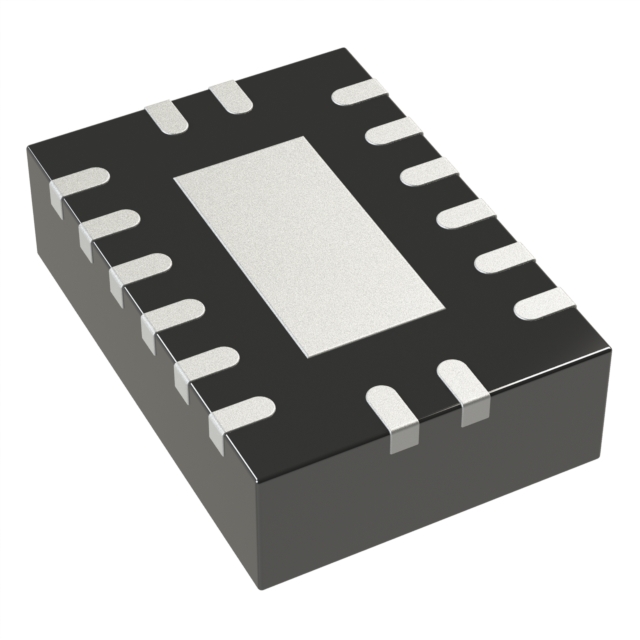

| Package / Case | 16-VFQFN Exposed Pad |
| Propagation Delay | 5.1 ns |
| Qualification | AEC-Q100 |
| Schmitt Trigger Input | False |
| Supplier Device Package | 16-DHVQFN (2.5x3.5) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.46 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.49 | |||
| 25 | $ 0.46 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.16 | |||
| 15000 | $ 0.15 | |||
| 30000 | $ 0.14 | |||
Description
General part information
74AHC123 Series
Monostable Multivibrator 5.1 ns 16-DHVQFN (2.5x3.5)
