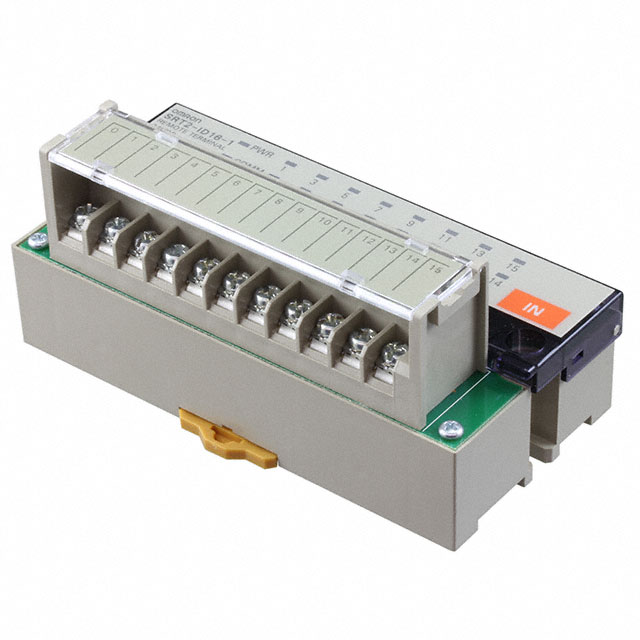

SRT2-ID16-1

Obsolete

Omron Electronics Inc-EMC Div

INPUT MODULE 16 DIGITAL 24V

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

INPUT MODULE 16 DIGITAL 24V

Technical Specifications

Parameters and characteristics for this part

Specification	SRT2-ID16-1

Approval Agency	UL, CSA, CE
For Use With/Related Products	C Series
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	Digital
Termination Style	Screw Terminal
Type	Input Module
Voltage - Supply	24 VDC
Weight	0.243 lb
Weight	110.22 g

Part	Mounting Type	For Use With/Related Products	Voltage - Supply	Approval Agency	Weight	Weight	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Type	Termination Style	Ingress Protection	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
Omron Electronics Inc-EMC Div SRT2-ID04	DIN Rail	C Series	24 VDC	CE CSA UL	0.176 lb	79.83 g	Digital	4	Input Module	Screw Terminal
Omron Electronics Inc-EMC Div SRT2-ID16	DIN Rail	C Series	24 VDC	CE CSA UL	0.243 lb	110.22 g	Digital	16	Input Module	Screw Terminal
Omron Electronics Inc-EMC Div SRT2-ID08-1	DIN Rail	C Series	24 VDC	CE CSA UL	0.176 lb	79.83 g	Digital	8	Input Module	Screw Terminal
Omron Electronics Inc-EMC Div SRT2-ID08CL	DIN Rail	C Series	24 VDC	CE	0.529 lb	239.95 g	Digital	8	Input Module	Screw Terminal	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div SRT2-ID16-1	DIN Rail	C Series	24 VDC	CE CSA UL	0.243 lb	110.22 g	Digital	16	Input Module	Screw Terminal
Omron Electronics Inc-EMC Div SRT2-ID04CL	DIN Rail	C Series	24 VDC	CE	0.397 lb	180.08 g	Digital	4	Input Module	Screw Terminal	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div SRT2-ID32ML	DIN Rail	C Series	24 VDC	CE	0.221 lb	100.24 g	Digital	32	Input Module	Rectangular Connector		55 °C	-10 °C
Omron Electronics Inc-EMC Div SRT2-ID04CL-1	DIN Rail	C Series	24 VDC	CE	0.397 lb	180.08 g	Digital	4	Input Module	Screw Terminal	IP67 - Dust Tight Waterproof
Omron Electronics Inc-EMC Div SRT2-ID08S	DIN Rail	C Series	24 VDC		0.176 lb	79.83 g	Digital	8	Input Module	Screw Terminal
