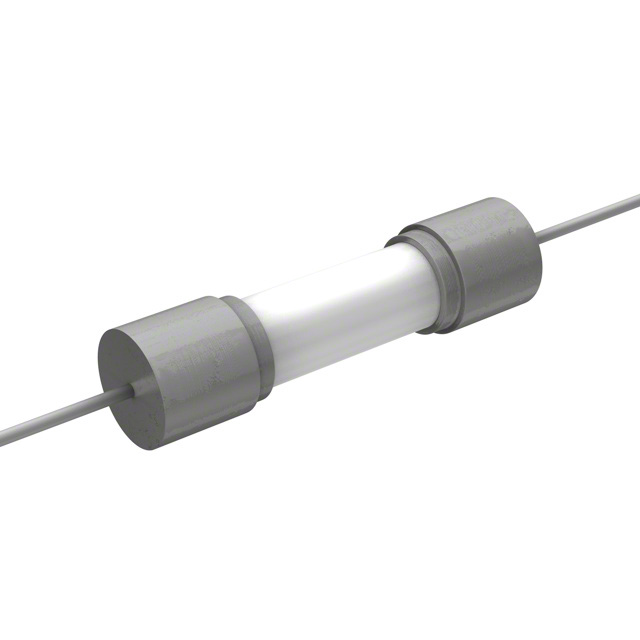

0234004.MXEP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, MEDIUM ACTING, 4 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 234 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
0234004.MXEP
ActiveLittelfuse/Commercial Vehicle Products
FUSE, CARTRIDGE, MEDIUM ACTING, 4 A, 250 V, 5MM X 20MM, 0.2" X 0.79", 234 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0234004.MXEP |
|---|---|
| Approval Agency | UL, CE, PSE, K-Mark, CSA |
| Breaking Capacity @ Rated Voltage | 200 A |
| Current Rating (Amps) | 4 A |
| DC Cold Resistance | 0.0304 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 10.37 I²t |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Medium Blow |
| Size / Dimension [diameter] | 5.8 mm |
| Size / Dimension [diameter] | 0.228 in |
| Size / Dimension [z] | 22.5 mm |
| Size / Dimension [z] | 0.886 " |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0234004 Series
5x20mm meduim- acting glass body fuse designed to UL specification.
