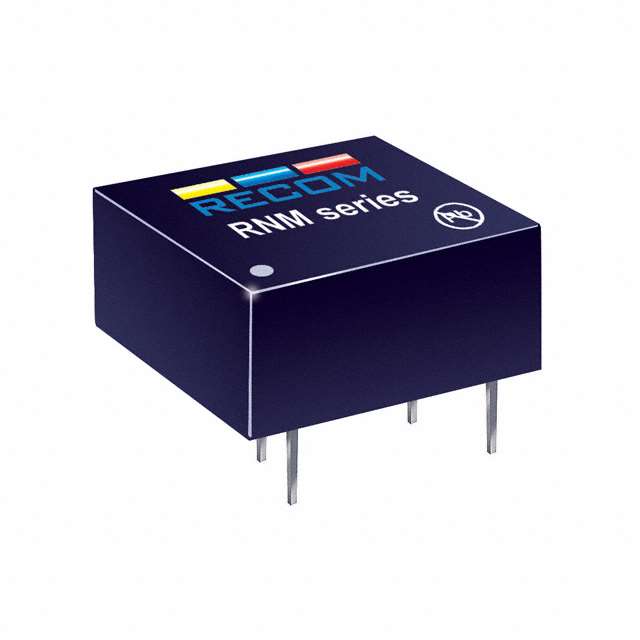

RNM-3.315S/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 3.3VIN 15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RNM-3.315S/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 1KV UNREG 3.3VIN 15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RNM-3.315S/P

Applications	ITE (Commercial)
Current - Output (Max) [Max]	66 mA
Efficiency	84 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module, 4 Leads
Size / Dimension [x]	8.3 mm
Size / Dimension [x]	0.33 in
Size / Dimension [y]	8.3 mm
Size / Dimension [y]	0.33 in
Size / Dimension [z]	0.27 "
Size / Dimension [z]	6.8 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	3.6 V
Voltage - Input (Min) [Min]	3 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V

RNM-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 2kV UNREG 12Vin 3.3Vout

Part	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Efficiency	Voltage - Isolation	Type	Voltage - Output 1	Features	Voltage - Input (Min) [Min]	Applications
RECOM Power RNM-053.3S	1	303 mA	6-DIP Module 4 Leads	5.5 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	75 %	1000 V	Isolated Module	3.3 V	SCP	4.5 V	ITE (Commercial)
RECOM Power RNM-1209S/P	1		6-DIP Module 4 Leads	13.2 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	1000 V	Isolated Module	9 V	SCP	10.8 V	ITE (Commercial)
RECOM Power RNM-1205S/P	1	200 mA	6-DIP Module 4 Leads	13.2 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	1000 V	Isolated Module	5 V	SCP	10.8 V	ITE (Commercial)
RECOM Power RNM-123.3S/P	1	303 mA	6-DIP Module 4 Leads	13.2 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	75 %	1000 V	Isolated Module	3.3 V	SCP	10.8 V	ITE (Commercial)
RECOM Power RNM-1212S/HP	1	83 mA	6-DIP Module 4 Leads	13.2 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	2000 V	Isolated Module	12 V	SCP	10.8 V	ITE (Commercial)
RECOM Power RNM-3.315S/P	1	66 mA	6-DIP Module 4 Leads	3.6 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	84 %	1000 V	Isolated Module	15 V	SCP	3 V	ITE (Commercial)
RECOM Power RNM-1215S	1	66 mA	6-DIP Module 4 Leads	13.2 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	84 %	1000 V	Isolated Module	15 V	SCP	10.8 V	ITE (Commercial)
RECOM Power RNM-3.309S/HP	1		6-DIP Module 4 Leads	3.6 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	2000 V	Isolated Module	9 V	SCP	3 V	ITE (Commercial)
RECOM Power RNM-3.305S/H	1	200 mA	6-DIP Module 4 Leads	3.6 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	2000 V	Isolated Module	5 V	SCP	3 V	ITE (Commercial)
RECOM Power RNM-1505S/HP	1	200 mA	6-DIP Module 4 Leads	16.5 V	0.27 "	8.3 mm	8.3 mm	0.33 in	0.33 in	6.8 mm	85 °C	-40 °C	Through Hole	78 %	2000 V	Isolated Module	5 V	SCP	13.5 V	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 7.87
Sager	N/A	1	$ 8.38
		5	$ 8.11
		10	$ 7.74
		25	$ 7.50
		50	$ 7.41
		100	$ 7.19
		250	$ 6.70

Description

General part information

RNM-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 2kV UNREG 12Vin 3.3Vout

Documents

Technical documentation and resources

Datasheet

Document
