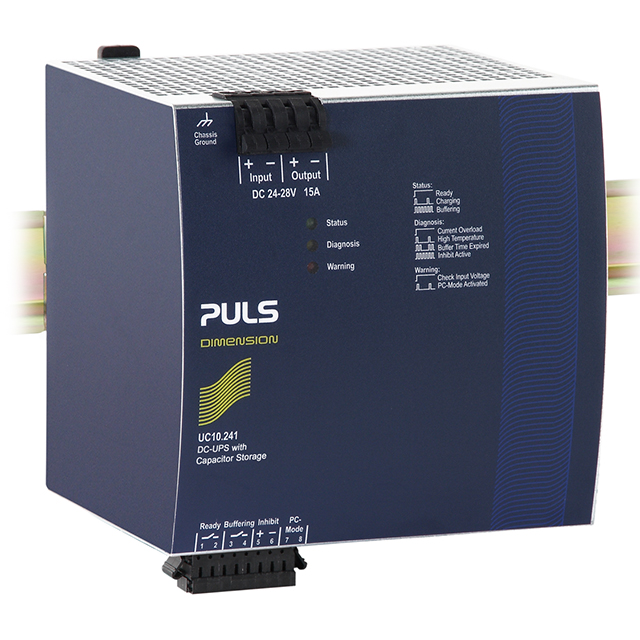

UC10.241

Active

PULS, LP

DIN RAIL BUFFERMOD 6KWS 24V 15A

Search across all available documentation for this part.

Active

PULS, LP

DIN RAIL BUFFERMOD 6KWS 24V 15A

Technical Specifications

Parameters and characteristics for this part

Specification	UC10.241

Applications	Industrial Control, General Purpose
Backup Time - Max Load	9 seconds
Form	Din Rail
Height [z]	124 mm
Height [z]	4.882 in
Power - Rated	360 W
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	4.961 in
Size / Dimension [y]	126 mm
Type	Standby (No Regulation)
Voltage - Output	24 V
Weight	2.5 lbs
Weight	1.1 kg

Part	Backup Time - Max Load	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Form	Applications	Voltage - Output	Power - Rated	Weight	Weight
PULS, LP UC10.241	9 seconds	Standby (No Regulation)	4.606 "	4.961 in	117 mm	126 mm	124 mm	4.882 in	Din Rail	General Purpose Industrial Control	24 V	360 W	2.5 lbs	1.1 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 900.00

General part information

DIN RAIL BUFFERMOD 6KWS 24V 15A
