365011-01

Active

Qualtek

CONTINENTAL EUROPE POWER CORD, 1

Search across all available documentation for this part.

Active

Qualtek

CONTINENTAL EUROPE POWER CORD, 1

Technical Specifications

Parameters and characteristics for this part

Specification	365011-01

1st Connector	CEE 7/7
2nd Connector	IEC 320-C13, Right Angle
Approval Agency Marking	KEMA, OVE, NEMKO, VDE, SEMKO, FIMKO, CEBEC, CB, DEMKO
Approved Countries	Australia, Americas, Europe, Denmark, Germany, Austria, Asia, Netherlands, Africa, Sweden, Finland, Norway, Belgium
Color	Black
Cord Type	H05VV-F
Current Rating (Amps)	10 A
Length	5.91 '
Length	1.8 m
Number of Conductors	3
Operating Temperature	70 °C
Shielding	Unshielded
Style	Male Pins, Female Sockets
Voltage Rating	250 VAC
Wire Gauge	17 AWG

Part	Approval Agency Marking	Current Rating (Amps)	Voltage Rating	1st Connector	Length	Length	Shielding	Wire Gauge	Operating Temperature	Number of Conductors	Style	Approved Countries	Color	Cord Type	2nd Connector
Qualtek 365011-01	CB CEBEC DEMKO FIMKO KEMA NEMKO OVE SEMKO VDE	10 A	250 VAC	CEE 7/7	5.91 '	1.8 m	Unshielded	17 AWG	70 °C	3	Female Sockets Male Pins	Africa Americas Asia Australia Austria Belgium Denmark Europe Finland Germany Netherlands Norway Sweden	Black	H05VV-F	IEC 320-C13 Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

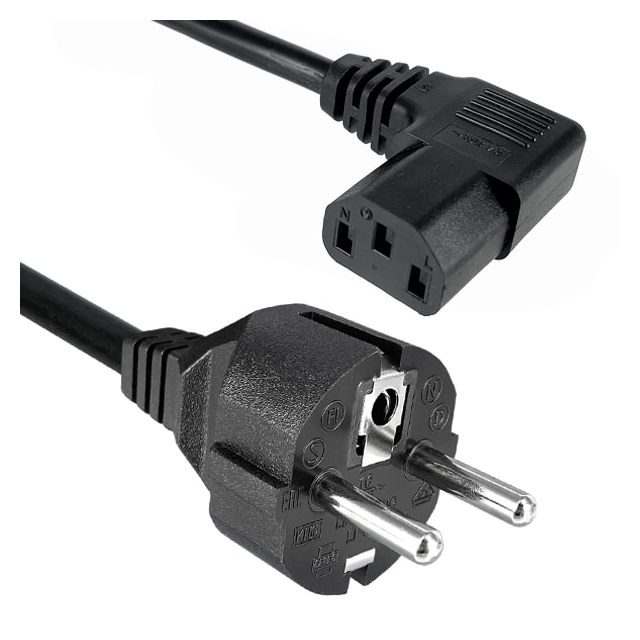

5.91' (1.80m) Power Cord Black CEE 7/7 To IEC 320-C13, Right Angle H05VV-F
