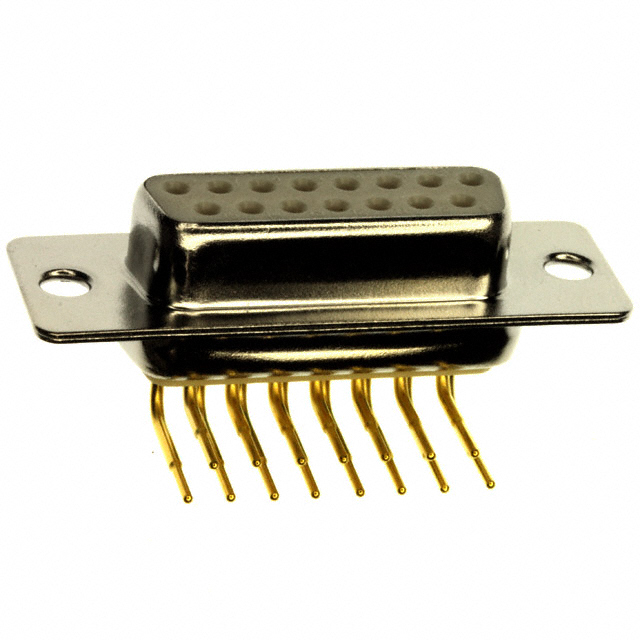

173-E15-213R001 - 173-e15-213r001

173-E15-213R001

Active
MH Connectors

D SUB CONNECTOR, DB15, RECEPTACLE, 173-E M SERIES, 15 CONTACTS, DA, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+5
173-E15-213R001 - 173-e15-213r001

173-E15-213R001

Active
MH Connectors

D SUB CONNECTOR, DB15, RECEPTACLE, 173-E M SERIES, 15 CONTACTS, DA, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+5

Technical Specifications

Parameters and characteristics for this part

Specification173-E15-213R001
Backset Spacing0.283 in
Backset Spacing7.2 mm
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions15
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 10.56
10$ 8.11
25$ 7.32
40$ 6.96
80$ 6.46
230$ 5.79
440$ 5.43
945$ 5.04
NewarkEach 500$ 6.24
1000$ 5.44
5000$ 5.06

Description

General part information

173-E15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
