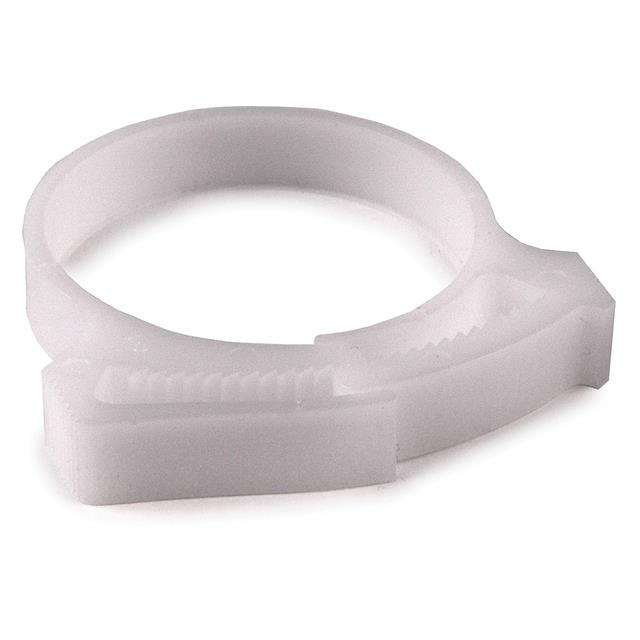

SNP3310H4

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.29" 1.58" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SNAPPER HOSE CLAMP, 1.29" 1.58" BUNDLE DIAMETER, POM, WHITE, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	SNP3310H4

Color	White
Length [Max]	63.93 mm
Length [Max]	2.517 in
Length [Min]	39.73 mm
Length [Min]	1.564 in
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 in
Opening Size [Max]	40.51 mm
Opening Size [Max] [z]	1.595 in
Opening Size [Min]	32.59 mm
Opening Size [Min] [z]	1.283 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.29 in
Width	7.36 mm

Part	Width	Width	Material	Type	Material Thickness	Material Thickness	Color	Material Flammability Rating	Opening Size [Max] [z]	Opening Size [Max]	Opening Size [Min]	Opening Size [Min] [z]	Type Attributes	Length [Max]	Length [Max]	Length [Min]	Length [Min]
HELLERMANNTYTON SNP3310H4	0.29 in	7.36 mm	Polyacetal (POM)	Clamp Hose	1.7 mm	0.067 in	White	UL94 HB	1.595 in	40.51 mm	32.59 mm	1.283 in	Push-Fit	63.93 mm	2.517 in	39.73 mm	1.564 in
