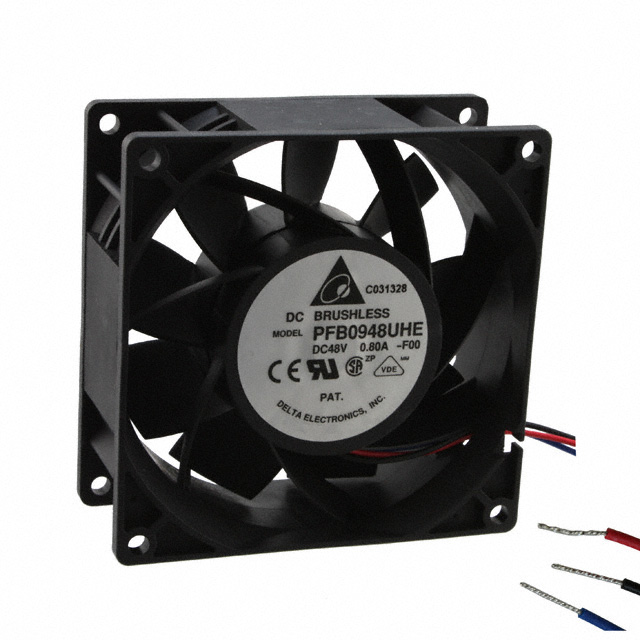

PFB0948UHE-F00

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0948UHE-F00

Air Flow	4.3 m³/min
Air Flow	153.5 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	600 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	28.8 W
RPM	7000 RPM
Static Pressure	1.449 in H2O
Static Pressure	360.9 Pa
Termination	3 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	28 V
Weight	0.553 lb
Weight	250.84 g
Width [y]	38 mm

Part	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Features	Static Pressure	Static Pressure	Lifetime @ Temp.	Voltage - Rated [custom]	Bearing Type	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Weight	Weight	Noise	Width [y]	RPM	Approval Agency	Termination	Fan Type	Material - Frame	Material - Blade	Power (Watts)
Delta Electronics PFB0948UHE-F00	600 mA	28 V	56 VDC	Locked Rotor Protection Speed Sensor (Tach)	1.449 in H2O	360.9 Pa	50000 Hrs	48 VDC	Ball	4.3 m³/min	153.5 CFM	-10 °C	-10 °C	60 °C	60 °C	0.553 lb	250.84 g	64 dB(A)	38 mm	7000 RPM	CE CSA UL VDE	3 Wire Leads	Tubeaxial	Plastic	Plastic	28.8 W
Delta Electronics PFB0948EHE	0.21 A	28 V	56 VDC		0.691 in H2O	172.1 Pa	70000 Hrs	48 VDC	Ball	2.9 m³/min	103.7 CFM	-10 °C	-10 °C	60 °C	60 °C	0.553 lb	250.84 g	54 dB	38 mm	4800 RPM	CE CSA UL VDE	2 Wire Leads	Tubeaxial	Plastic	Plastic	10.08 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 153.5 CFM (4.30m³/min) 3 Wire Leads
