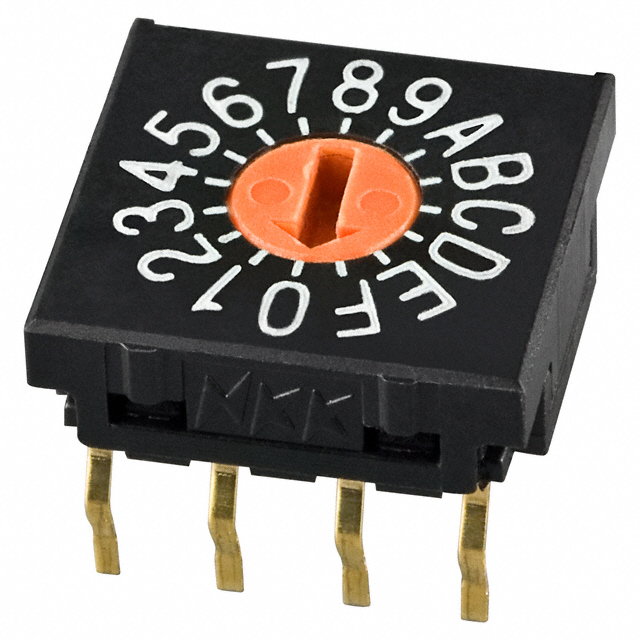

FR01FR16P-S

Active

NKK Switches

ROTARY SWITCH, 16 POSITION, 1 POLE

Search across all available documentation for this part.

Active

NKK Switches

ROTARY SWITCH, 16 POSITION, 1 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	FR01FR16P-S

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.15 "
Height Above Board	3.81 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	False

Part	Current Rating (Amps)	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Contact Finish	Voltage Rating	Mounting Type	Actuator Level	Circuit	Actuator Type	Contact Material	Electrical Life	Length	Length	Number of Positions	Body Material	Termination Style	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01FR16P	100 mA	10000 Steps	0.1 in	Full	2.54 mm	-25 °C	85 °C	0.15 "	3.81 mm	Gold	5 V	Through Hole	Flush Recessed	Hexadecimal	Rotary for Tool	Copper Alloy	10000 Cycles	10 mm	0.394 in	16	Polyamide (PA) Nylon Glass Filled	PC Pin
NKK Switches FR01FR16H	100 mA	10000 Steps	0.1 in	Full	2.54 mm	-25 °C	85 °C			Gold	5 V	Through Hole Right Angle	Flush Recessed	Hexadecimal	Rotary for Tool	Copper Alloy	10000 Cycles	10 mm	0.394 in	16	Polyamide (PA) Nylon Glass Filled	PC Pin	10 mm	0.394 in
NKK Switches FR01FR16P-S	100 mA	10000 Steps	0.1 in	Full	2.54 mm	-25 °C	85 °C	0.15 "	3.81 mm	Gold	5 V	Through Hole	Flush Recessed	Hexadecimal	Rotary for Tool	Copper Alloy	10000 Cycles	10 mm	0.394 in	16	Polyamide (PA) Nylon Glass Filled	PC Pin
NKK Switches FR01FR16H-06XL-W-S	100 mA	10000 Steps	0.1 in	Full	2.54 mm	-25 °C	85 °C			Gold	5 V	Through Hole Right Angle	Flush Recessed	Hexadecimal	Rotary for Tool	Copper Alloy	10000 Cycles	10 mm	0.394 in	16	Polyamide (PA) Nylon Glass Filled	PC Pin	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
