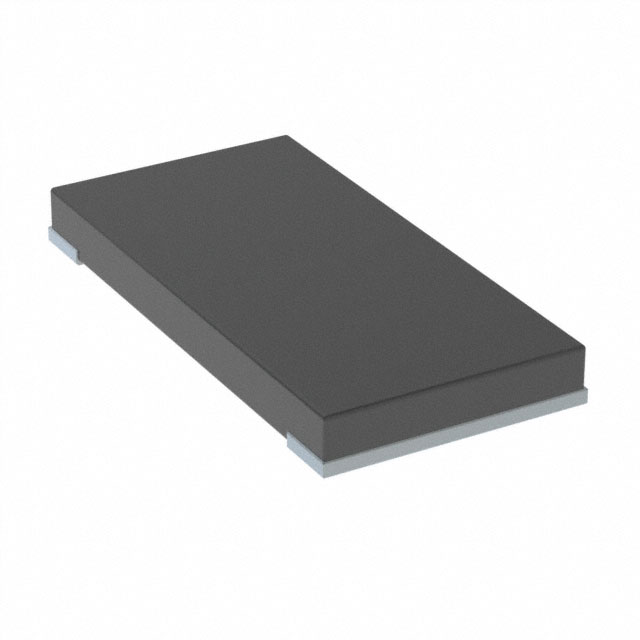

TLRH3AWTTE15L0F

Active

KOA Speer Electronics, Inc.

RES 0.015 OHM 1% 2W 2512

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLRH3AWTTE15L0F

Active

KOA Speer Electronics, Inc.

RES 0.015 OHM 1% 2W 2512

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLRH3AWTTE15L0F

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-65 ░C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	2 W
Ratings	AEC-Q200
Resistance	15 mOhms
Size / Dimension [x]	0.248 in
Size / Dimension [x]	6.3 mm
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Supplier Device Package	2512
Temperature Coefficient	75 ppm/°C
Tolerance	1 %

TLRH3A Series

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Tolerance	Composition	Features	Supplier Device Package	Package / Case	Package / Case	Number of Terminations	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KOA Speer Electronics, Inc. TLRH3AWTTE56L0F	2 W	170 °C	-65 ░C	56 mOhms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3AWTTE50L0F	2 W	170 °C	-65 ░C	0.05 Ohms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3APTTE50L0F	4 W	170 °C	-65 ░C	0.05 Ohms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3APTTE40L0F	4 W	170 °C	-65 ░C		1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3AWTTER180F	2 W	170 °C	-65 ░C	0.18 Ohms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3AWTTE15L0F	2 W	170 °C	-65 ░C	15 mOhms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	75 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3APTTE20L0F	5 W	170 °C	-65 ░C	0.02 Ohms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3AWTTE12L0F	2 W	170 °C	-65 ░C	12 mOhms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	75 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in
KOA Speer Electronics, Inc. TLRH3APTTE25L0F	5 W	170 °C	-65 ░C	25 mOhms	1 %	Metal Element	Automotive AEC-Q200 Current Sense	2512	6432 Metric	2512	2	50 ppm/°C	0.248 in	6.3 mm	3.2 mm	0.126 "	AEC-Q200	0.7 mm	0.028 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.53

Description

General part information

TLRH3A Series

15 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Element
