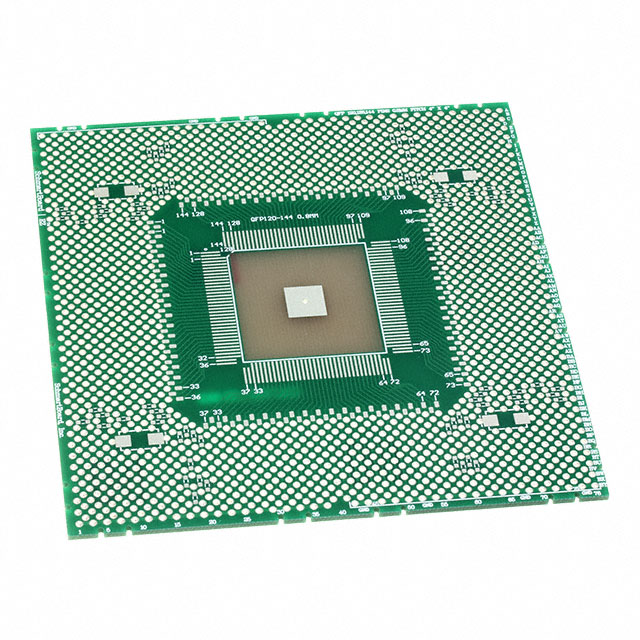

202-0030-01

Active

Schmartboard, Inc.

QFP, 120 - 144 PINS 0.8MM PITCH,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

QFP, 120 - 144 PINS 0.8MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0030-01

Number of Positions	144
Package Accepted	TQFP, PQFP, QFP
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "

Part	Pitch [x]	Pitch [x]	Proto Board Type	Number of Positions	Package Accepted	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Schmartboard, Inc. 202-0030-01	0.8 mm	0.031 in	SMD to Plated Through Hole Board	144	PQFP QFP TQFP	4 in	101.6 mm	101.6 mm	4 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.00

General part information

QFP, 120 - 144 PINS 0.8MM PITCH,
