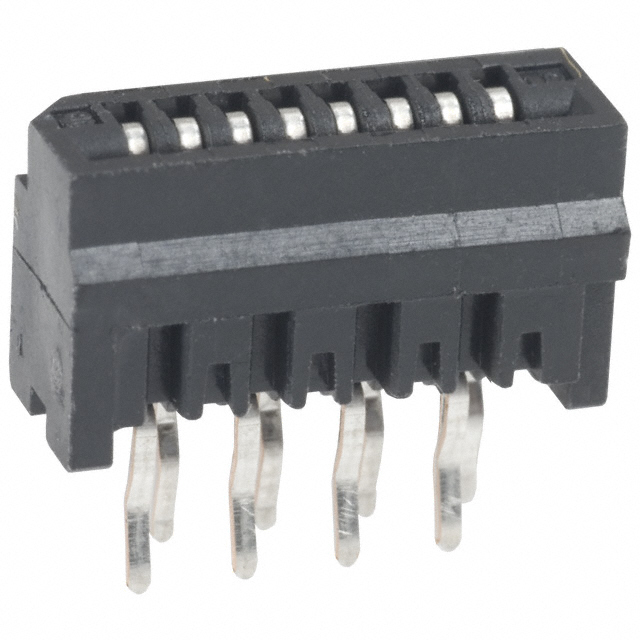

HLW8S-2C7LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 8POS 1MM PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 8POS 1MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HLW8S-2C7LF

Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.33 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	5.9 mm
Height Above Board [z]	0.232 in
Housing Color	Black
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Contact Material	Voltage Rating	Contact Finish	Connector/Contact Type	Number of Positions	Housing Material	Flat Flex Type	Mating Cycles	Housing Color	Mounting Type	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination
Amphenol ICC (FCI) HLW8S-2C7LF	Phosphor Bronze	100 V	Tin	Contacts Vertical - 1 Sided	8	Polybutylene Terephthalate (PBT) Glass Filled	FFC FPC	30	Black	Through Hole	0.33 mm	5.9 mm	0.232 in	85 °C	-55 °C	0.039 in	1 mm	UL94 V-0	Kinked Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
