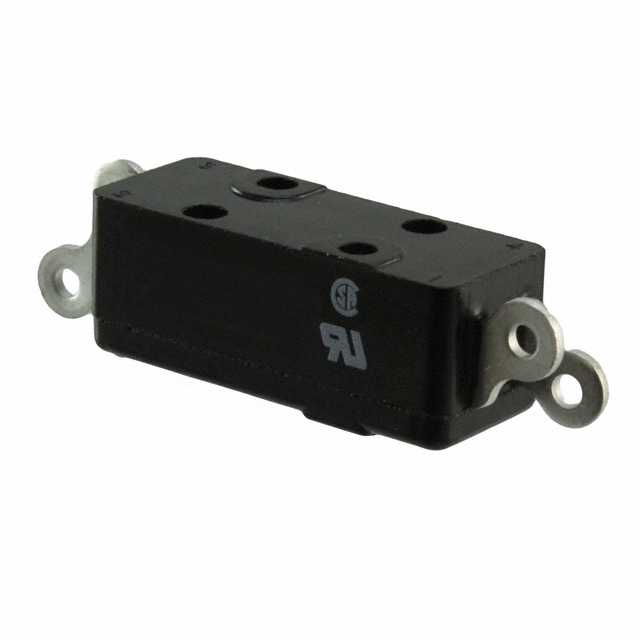

1TB1-2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Differential Travel	Differential Travel	Operating Position	Operating Position	Current Rating (Amps)	Circuit	Pretravel	Pretravel	Overtravel	Overtravel	Switch Function	Voltage Rating - AC	Termination Style	Release Force	Actuator Type	Operating Force [Max]	Operating Force [Min]	Mechanical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Honeywell Sensing and Productivity Solutions 1TB1-13	0.6 mm	0.025 in	11.7 mm	0.46 in	10 A	DPDT	1.5 mm	0.06 in	0.25 mm	0.01 in	On-Mom	125 V	Screw Terminal	113 gf	Round (Pin Plunger)	368 gf	198 gf
Honeywell Sensing and Productivity Solutions 1TB1-2	0.6 mm	0.025 in	11.7 mm	0.46 in	10 A	SPDT (DB/DM)	1.5 mm	0.06 in	0.25 mm	0.01 in	On-Mom	125 V	Solder Lug	113 gf	Round (Pin Plunger)	368 gf	198 gf	7000000 Cycles	Chassis Mount	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 75.61

General part information

Switch SPDT (DB/DM) Chassis Mount
