COH-1706-200-05-1NT

Active

Taica North America Corporation

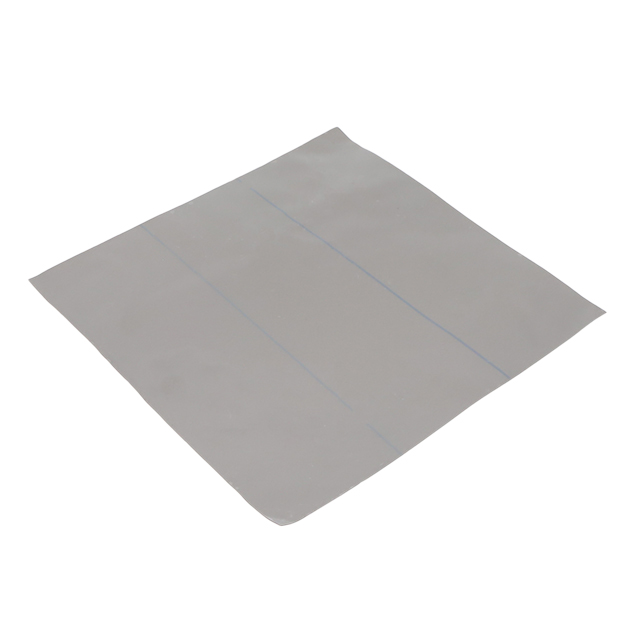

THERM PAD 200MMX200MM GRAY

Search across all available documentation for this part.

Active

Taica North America Corporation

THERM PAD 200MMX200MM GRAY

Technical Specifications

Parameters and characteristics for this part

Part	Outline [x]	Outline [y]	Material	Thickness	Thickness	Thermal Conductivity	Color	Shape	Adhesive	Type
Taica North America Corporation COH-1706-200-20	200 mm	200 mm	Silicone Gel	0.079 in	2 mm	3.8 W/m-K	Gray	Square	Tacky - Both Sides	Gel Pad Sheet
Taica North America Corporation COH-1706-400-20	400 mm	400 mm	Silicone Gel	0.079 in	2 mm	3.8 W/m-K	Gray	Square	Tacky - Both Sides	Gel Pad Sheet
Taica North America Corporation COH-1706-200-10-1NT	200 mm	200 mm	Silicone Gel	0.039 in	0.991 mm	3.8 W/m-K	Gray	Square	Tacky - One Side	Gel Pad Sheet
Taica North America Corporation COH-1706-200-05-1NT	200 mm	200 mm	Silicone Gel	0.02 in	0.508 mm	3.8 W/m-K	Gray	Square	Tacky - One Side	Gel Pad Sheet
Taica North America Corporation COH-1706-200-30	200 mm	200 mm	Silicone Gel	0.118 in	3 mm	3.8 W/m-K	Gray	Square	Tacky - Both Sides	Gel Pad Sheet
Taica North America Corporation COH-1706-200-10	200 mm	200 mm	Silicone Gel	0.039 in	0.991 mm	3.8 W/m-K	Gray	Square	Tacky - Both Sides	Gel Pad Sheet
Taica North America Corporation COH-1706-400-30	400 mm	400 mm	Silicone Gel	0.118 in	3 mm	3.8 W/m-K	Gray	Square	Tacky - Both Sides	Gel Pad Sheet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray 200.00mm x 200.00mm Square Tacky - One Side

Technical documentation and resources

No documents available
