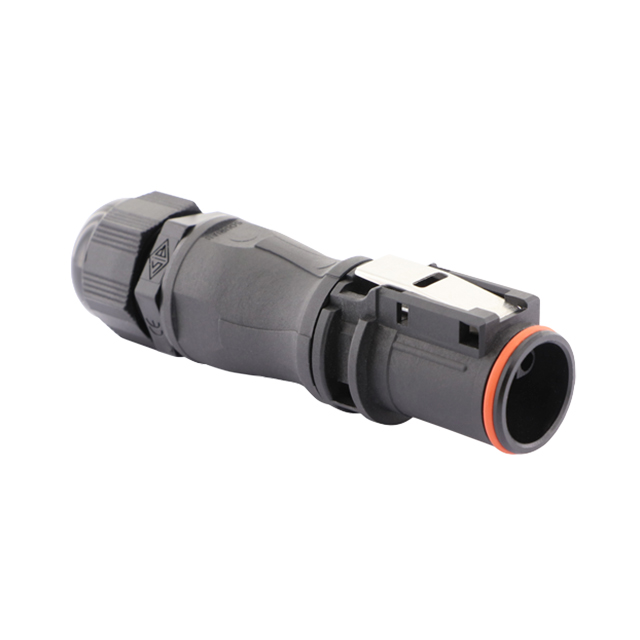

UTL6JC103G1S
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG F/M 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
UTL6JC103G1S
ActiveSouriau-Sunbank by Eaton
CONN PLG HSG F/M 4POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTL6JC103G1S |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Features | Backshell |
| Housing Color | Black |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Size - Insert | 10-3 |
| Shielding | Unshielded |
| Type | For Female Sockets and Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 22.70 | |
| 10 | $ 19.88 | |||
| 25 | $ 19.02 | |||
| 50 | $ 18.41 | |||
| 100 | $ 17.79 | |||
| 250 | $ 16.81 | |||
| 500 | $ 16.32 | |||
Description
General part information
UTL6J Series
4 (3 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
