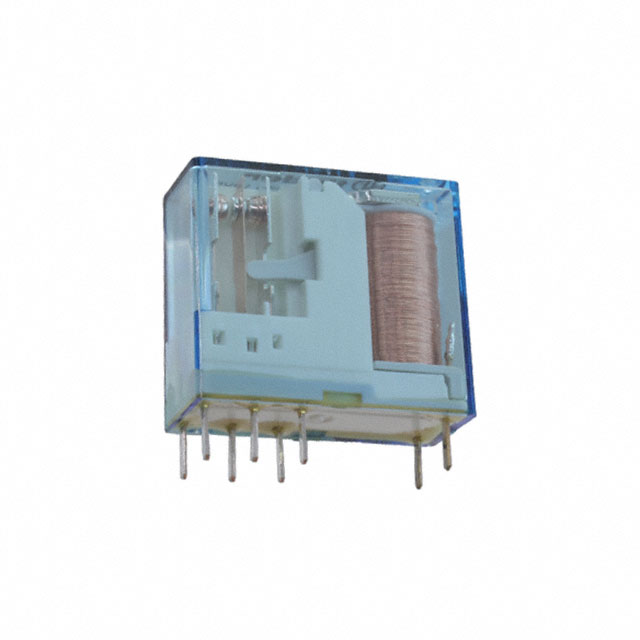

40.52.7.012.0000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

40.52.7.012.0000

Active

Finder Relays, Inc.

RELAY GEN PURPOSE DPDT 8A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	40.52.7.012.0000

Approval Agency	EAC, CCC, RINA, CSA, cURus, VDE, ENEC
Coil Current	42 mA
Coil Resistance	288 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	3200 VA
Mounting Type	Socketable
Must Operate Voltage	8.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	Plug In

40.52.7 Series

Part	Switching Voltage [Max]	Contact Material	Termination Style	Must Operate Voltage	Relay Type	Must Release Voltage	Contact Form	Approval Agency	Contact Rating (Current)	Mounting Type	Coil Voltage	Release Time	Operate Time	Coil Resistance	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Coil Type	Coil Current
Finder Relays, Inc. 40.52.7.005.0000	400 VAC	Silver Nickel (AgNi)	Plug In	3.7 VDC	General Purpose	1 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	5 VDC	4 ms	12 ms	50 Ohms	Sealed - Flux Protection	85 °C	-40 °C	3200 VA	Non Latching	100 mA
Finder Relays, Inc. 40.52.7.012.0001	400 VAC	Silver Nickel (AgNi)	Plug In	8.8 VDC	General Purpose	2.4 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	12 VDC	4 ms	12 ms	288 Ohms		85 °C	-40 °C	3200 VA	Non Latching	42 mA
Finder Relays, Inc. 40.52.7.024.5000	400 VAC	Silver Nickel (AgNi)	Plug In	17.5 VDC	General Purpose	4.8 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	24 VDC	4 ms	12 ms	1.15 kOhms	Sealed - Flux Protection	85 °C	-40 °C	3200 VA	Non Latching	21 mA
Finder Relays, Inc. 40.52.7.048.0001	400 VAC	Silver Nickel (AgNi)	Plug In	35 VDC	General Purpose	9.6 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	48 VDC	4 ms	12 ms	4.8 kOhms		85 °C	-40 °C	3200 VA	Non Latching	10 mA
Finder Relays, Inc. 40.52.7.024.0001	400 VAC	Silver Nickel (AgNi)	Plug In	17.5 VDC	General Purpose	4.8 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	24 VDC	4 ms	12 ms	1.15 kOhms		85 °C	-40 °C	3200 VA	Non Latching	21 mA
Finder Relays, Inc. 40.52.7.012.0000	400 VAC	Silver Nickel (AgNi)	Plug In	8.8 VDC	General Purpose	2.4 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	12 VDC	3 ms	7 ms	288 Ohms	Sealed - Flux Protection	85 °C	-40 °C	3200 VA	Non Latching	42 mA
Finder Relays, Inc. 40.52.7.024.0301	400 VAC	Silver Nickel (AgNi)	Plug In	17.5 VDC	General Purpose	4.8 VDC	DPST-NO (2 Form A)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	24 VDC	4 ms	12 ms	1.15 kOhms		85 °C	-40 °C	3200 VA	Non Latching	21 mA
Finder Relays, Inc. 40.52.7.018.0000	400 VAC	Silver Nickel (AgNi)	Plug In	13.2 VDC	General Purpose	3.6 VDC	DPDT (2 Form C)	CCC CSA cURus EAC ENEC RINA VDE	8 A	Socketable	18 VDC	4 ms	12 ms	650 Ohms	Sealed - Flux Protection	85 °C	-40 °C	3200 VA	Non Latching	27.7 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.64
		10	$ 6.23
		30	$ 5.53
		50	$ 5.26
		100	$ 4.98
		250	$ 4.43
		500	$ 4.15
		1000	$ 3.87

Description

General part information

40.52.7 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
