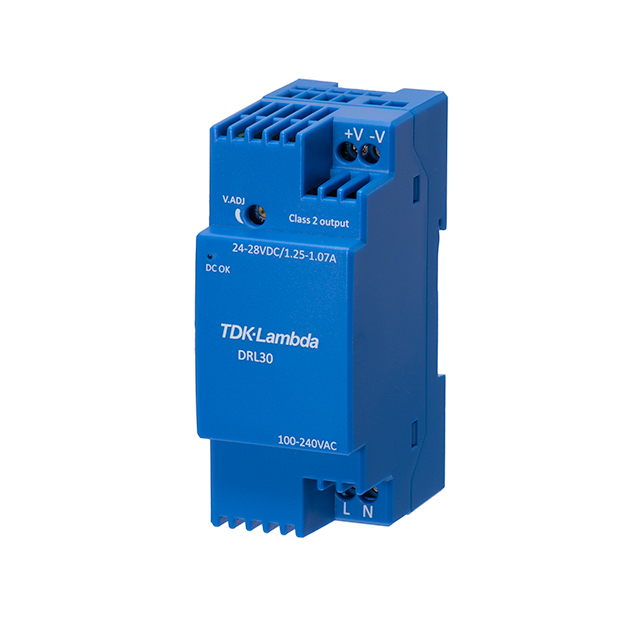

DRL30-24-1

Active

TDK-LAMBDA

POWER SUPPLY, AC-DC, 24V, 1.25A

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER SUPPLY, AC-DC, 24V, 1.25A

Technical Specifications

Parameters and characteristics for this part

Specification	DRL30-24-1

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	CE
Current - Output (Max) [Max]	1.25 A
DC Voltage - Input (Max) [Max]	373 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	90 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	55.6 mm
Size / Dimension [x]	2.19 in
Size / Dimension [y]	36.1 mm
Size / Dimension [y]	1.42 in
Size / Dimension [z]	3.58 in
Size / Dimension [z]	90.9 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Approval Agency	Power (Watts)	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Features
TDK-LAMBDA DRL30-12-1	CE	30 W	373 V	120 V	36.1 mm	3.58 in	55.6 mm	90.9 mm	2.19 in	1.42 in	1	3000 V	AC or DC	-20 °C	71 °C	88 %	85 VAC	264 VAC	Hazardous Locations ITE (Commercial)	2.1 A	12 V	Adjustable Output Universal Input
TDK-LAMBDA DRL30-24-1	CE	30 W	373 V	120 V	36.1 mm	3.58 in	55.6 mm	90.9 mm	2.19 in	1.42 in	1	3000 V	AC or DC	-20 °C	71 °C	90 %	85 VAC	264 VAC	Hazardous Locations ITE (Commercial)	1.25 A	24 V	Adjustable Output Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.39
Newark	Each	1	$ 36.39

General part information

POWER SUPPLY, AC-DC, 24V, 1.25A
