NRN1.00BK250

Active

Techflex

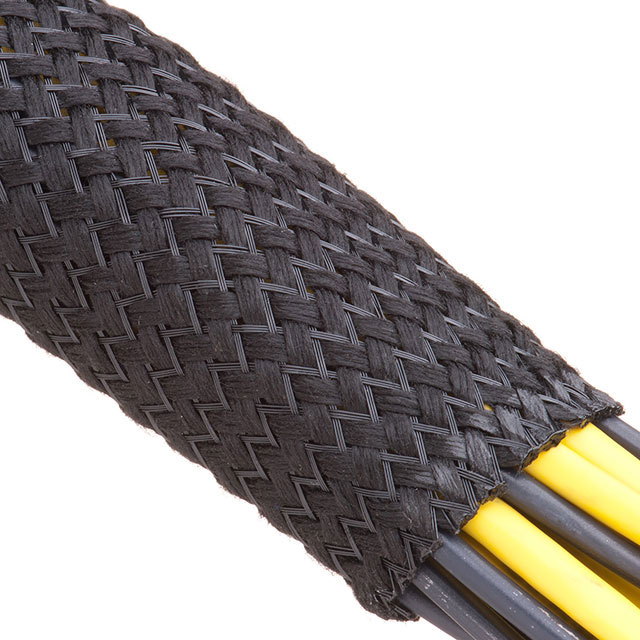

EXPANDABLE SLEEVE 1" X 250' BLK

Search across all available documentation for this part.

Active

Techflex

EXPANDABLE SLEEVE 1" X 250' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	NRN1.00BK250

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	41.28 mm
Diameter - Inside, Expanded [diameter]	1.625 in
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Features	Vibration Resistant, Noise Reduction, Clean Cut
Length [x]	76.2 m
Length [x]	250 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Material Flammability Rating	Features	Color	Material	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Type	Length [x]	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Techflex NRN1.00BK250	UL94 V-0	Clean Cut Noise Reduction Vibration Resistant	Black	Polyethylene Terephthalate (PET) Halogen Free	1 in	25.4 mm	Abrasion Resistant	41.28 mm	1.625 in	Expandable	Sleeve	76.2 m	250 ft	0.025 in	0.64 mm	125 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 381.15

General part information

Sleeve X 250' (76.20m) Black

Technical documentation and resources
